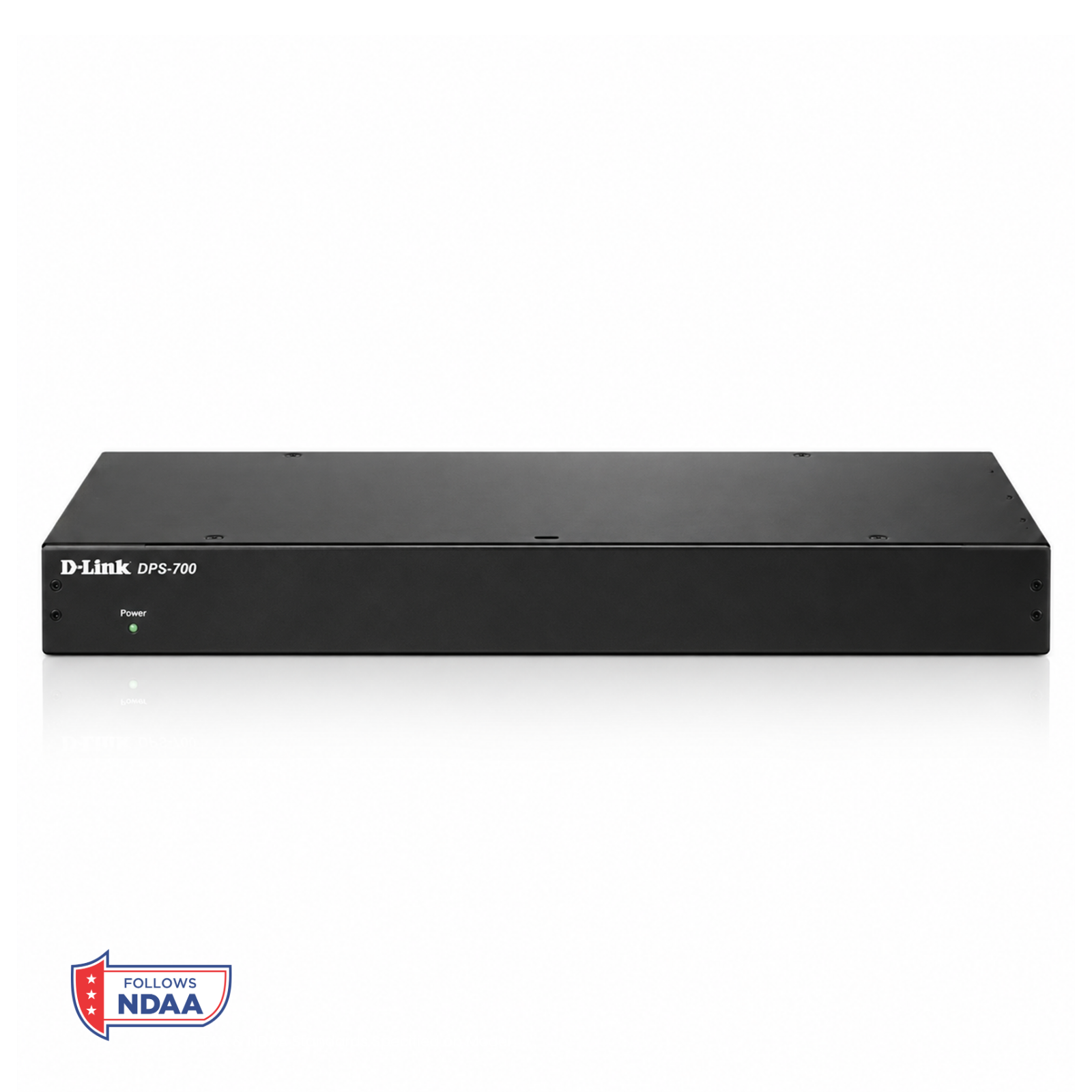

D-Link DPS-700 black electronic device on a white background with a reflection, featuring a small NDAA follows badge in the bottom-left corner.

D-Link Systems, Inc.

D-Link 589W Redundant Power Supply for Supported D-Link Managed PoE Switches (DPS-700) | Up to 370W PoE Budget Expansion

Name: D-Link 589W Redundant Power Supply for Supported D-Link Managed PoE Switches (DPS-700) | Up to 370W PoE Budget Expansion
Brand: D-Link Systems, Inc.
SKU: DPS-700
Price: 1024.99 USD
Availability: InStock

$1,024.99

Shipping calculated at checkout.

Highlights: Supported D-Link PoE Managed Switches (sold separately): DGS-3130-30PS, DGS-3130-54PS, DGS-3630-28PC, DGS-3630-52PC, DGS-1520-28MP, DGS-1520-52MP, DGS-1510-52XMP and DGS-1530-52P

Quantity

Talk to an expert

Redundant Power Failover Support. Expand Your PoE Budget.

The D-Link DPS-700 adds a second power source to compatible D-Link PoE managed switches and supports up to 370W* of additional PoE power budget through PoE power load sharing on supported models

Redundant Power Failover Support: Provides an additional power source for compatible D-Link PoE managed switches, helping support power availability and network continuity in the event of an internal power supply interruption
Up to 370W* of Additional PoE Capacity: Supports PoE power load sharing to provide up to 370W* of additional PoE power budget for connected PoE devices on supported switch models
Compatible D-Link PoE Managed Switches: Supports DGS-3130-30PS, DGS-3130-54PS, DGS-3630-28PC, DGS-3630-52PC, DGS-1520-28MP, DGS-1520-52MP, DGS-1510-52XMP, and DGS-1530-52P. Compatible switches sold separately.
Straightforward Integration: Designed to connect through the dedicated redundant power interface and integrate with supported D-Link PoE managed switches while maintaining the existing LAN switch configuration.
1U, 19-Inch Rack-Mountable Design: Solid metal housing and LED status indicators support installation in network closets, IDFs, and other rack-based environments.

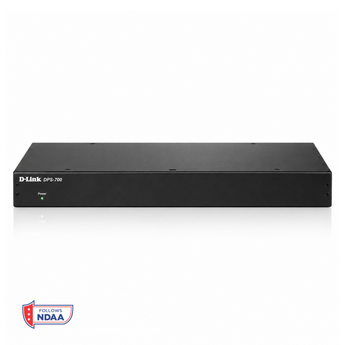

Follows NDAA Sourcing Standards: Designed to support procurement requirements for applicable public sector, education, and enterprise deployments
1-Year Limited Warranty: Backed by D-Link’s 1-Year Limited Warranty in North America and more than 40 years of networking experience

*DPS-700 maximum total output power is up to 589W. On supported D-Link PoE switches, the DPS-700 can provide up to 370W of additional PoE power budget through PoE power load sharing. Available PoE power may vary by compatible switch model, configuration, connected devices, and device power requirements. Refer to the applicable product datasheet for compatibility and configuration details.

Product variants

For business-class solutions, reseller pricing, distribution availability and partner access program, Please reach out to our business solutions team:(888)354-6574 or solutions@us.dlink.com

Specifications

Product Type	Redundant Power Supply (RPS)
Output Power	Up to 589 W
Additional PoE Budget	Up to 370 W on supported switches
PoE Power Load Sharing	Supported
Input Voltage	90–264 VAC
Input Frequency	47–63 Hz
Maximum Input Current	7.5 A at 110 VAC; 3.7 A at 240 VAC
Efficiency	80%
Form Factor	19-inch rack-mount, 1U
Dimensions	17.36 × 7.83 × 1.73 in (441 × 199 × 44 mm)
Weight	9.83 lb (4.46 kg)
Operating Temperature	32–149 °F (0–65 °C)
Operating Humidity	5–95% RH
MTBF	624,961 hours
Protection	Over-current protection
Status Indicator	LED indicator: on = RPS good; off = RPS failed
Compatible Switches	DGS-1510-52XMP, DGS-1520-28MP, DGS-1520-52MP, DGS-3130-30PS, DGS-3130-54PS, DGS-3630-28PC, and DGS-3630-52PC, DGS-1530-52P
Included Cable	39 in (1 m) DC power cable

Product information

US Domestic Orders To Contiguous 49 States

Orders are processed Monday – Friday, excluding holidays.
Orders using Fedex SmartPost are estimated to arrive within 5 to 7 business days (not including Sunday or holidays) following credit card authorization and order processing.
Please allow 1 to 3 business days to process order.
Orders placed after 10:00 am Pacific Standard Time will not be processed until the following business day.
D-Link will use their discretion on using Fedex SmartPost carriers only.
Sales tax are not counted towards the merchandise subtotal. Only one promotional code can be used per order.

Shipping Methods and Rates

Order Amount	Fedex SmartPost	Estimated Arrival Time
Over $30.00	FREE	5-7 business days

Free shipping on orders over $30 valid (not including sales tax) on Fedex SmartPost shipping only. Not valid on previous purchases. Valid for limited time only.

Shipping Timeline

Shipping time does not include processing time of 1-3 business days.
Estimated arrival times are not guaranteed. Weather delays and other unforeseen circumstances may impact delivery time.
Fedex does not deliver on Sundays or holidays.

D-Link Holidays

Packages will not be processed or shipped on the following acknowledged holidays.

Holiday	Acknowledged Date
New Year’s Day	Monday, January 1, 2024
President’s Day	Monday, February 19, 2024
Good Friday	Friday, March 29, 2024
Memorial Day	Monday, May 27, 2024
Fourth of July	Thursday, July 4, 2024
Labor Day	Monday, September 2, 2024
Thanksgiving Day	Thursday, November 28, 2024
Day after Thanksgiving	Friday, November 29, 2024
Christmas Day	Wednesday, December 25, 2024
New Year's Eve	Tuesday, December 31, 2024

Additional Information

We do not offer shipping to P.O. Boxes.
We are currently not offering shipping to the following locations:
- Alaska
- American Samoa
- Micronesia
- Guam
- Hawaii
- Marshall Islands
- Northern Mariana Islands
- Palau
- Puerto Rico
- S. Virgin Islands
- APO/FPO

Returns - Physical Products

Products purchased directly from the official shop.us.dlink.com site may be returned within 30 days of the delivery date, subject to the terms and conditions below.

To initiate a return, customers must contact D-Link to obtain a Return Merchandise Authorization (RMA) and return instructions. Returns received without an approved RMA may not be processed.

Returned products must be received in good condition and include:

the unit with an intact serial/UPC label
original power supply
all accessories originally included
Proof of purchase or invoice

We strongly recommend including the original packaging and documentation. If items are missing, damaged, or show signs of excessive use, the refund amount may be reduced accordingly.

Restocking Fees
Returned products may be subject to a restocking fee of up to 15%, at D-Link’s discretion, based on product condition, completeness, and the nature of the return.

Return Shipping
Unless the product is confirmed or deemed defective by the D-Link technical support team, or the return is due to a shipping error by D-Link, the customer is responsible for return shipping costs.

We recommend using a carrier that provides a tracking number. D-Link is not responsible for items that are lost or damaged in transit.

Defective or Incorrect Products
If a product is confirmed or deemed defective by the D-Link technical support team, or an incorrect item was shipped, D-Link will provide return instructions and cover applicable return shipping costs.

Refund Processing
Approved refunds will be issued to the original payment method once the returned product has been received and inspected.

Refund Timing
Refunds are typically processed within seven (7) to ten (10) business days of D-Link’s receipt of the returned product. Please note that your financial institution may take additional time to post the refund to your account.

Final Sale Items
Products clearly marked as Final Sale are not eligible for return, exchange, or refund.

Services
All sales of services, including technical support or service plans, are final and non-refundable.

Consumer Rights
Nothing in this policy limits any rights you may have under applicable consumer protection laws that vary by state.

To start a return:
Use the contact methods available at: https://support.dlink.com/search.aspx

Product Datasheet Quick Install Guide Talk to an Expert Request a Quote

Redundant Power Failover Support. Expand Your PoE Budget.

When a PoE switch carries network traffic and supplies power to multiple connected devices, power availability becomes an important part of network continuity planning. The D-Link DPS-700 provides redundant power failover support alongside the internal power supply of a compatible D-Link PoE managed switch, helping support power availability in the event of an internal power supply interruption.

The DPS-700 also supports PoE power load sharing, providing up to 370W* of additional PoE power budget on supported models. This provides additional headroom as aggregate PoE power requirements increase.

Compatible D-Link PoE Managed Switches (sold separately):

DGS-3630-28PC • DGS-3630-52PC • DGS-3130-30PS • DGS-3130-54PS • DGS-1520-28MP • DGS-1520-52MP • DGS-1530-52P • DGS-1510-52XMP

Network Environments Include:

Surveillance Networks • Access Control • Business Networks • Education & Campus Networks • Multi-Dwelling Properties • Network Closets & IDFs • High-Density PoE Deployments

*Maximum output power is up to 589W. The DPS-700 can provide up to 370W of additional PoE power budget on supported D-Link PoE switches. Available PoE power may vary by compatible switch model, configuration, connected devices, and device power requirements. Refer to the applicable product datasheet for compatibility, configuration, and power specifications.

Redundant Power Support

Adds a second power source for compatible D-Link PoE managed switches

Up to 370W* Additional PoE

Supports additional PoE power budget through power load sharing

Up to 589W* Total Output

Provides up to 589W* of total output power

1U Rack-Mountable Design

Fits standard 19-inch racks for network closets and IDFs

DC Power Cable Included

Includes a 39-inch (1 m) DC cable for compatible switch connection

Pairs with a Compatible Switch

Connects the DPS-700 to one compatible D-Link PoE managed switch

REDUNDANT Power SUPPORT

Redundant Power Failover Support

The D-Link DPS-700 provides a second power source alongside the internal power supply of a compatible D-Link PoE managed switch, helping support power availability and network continuity in the event of an internal power supply interruption

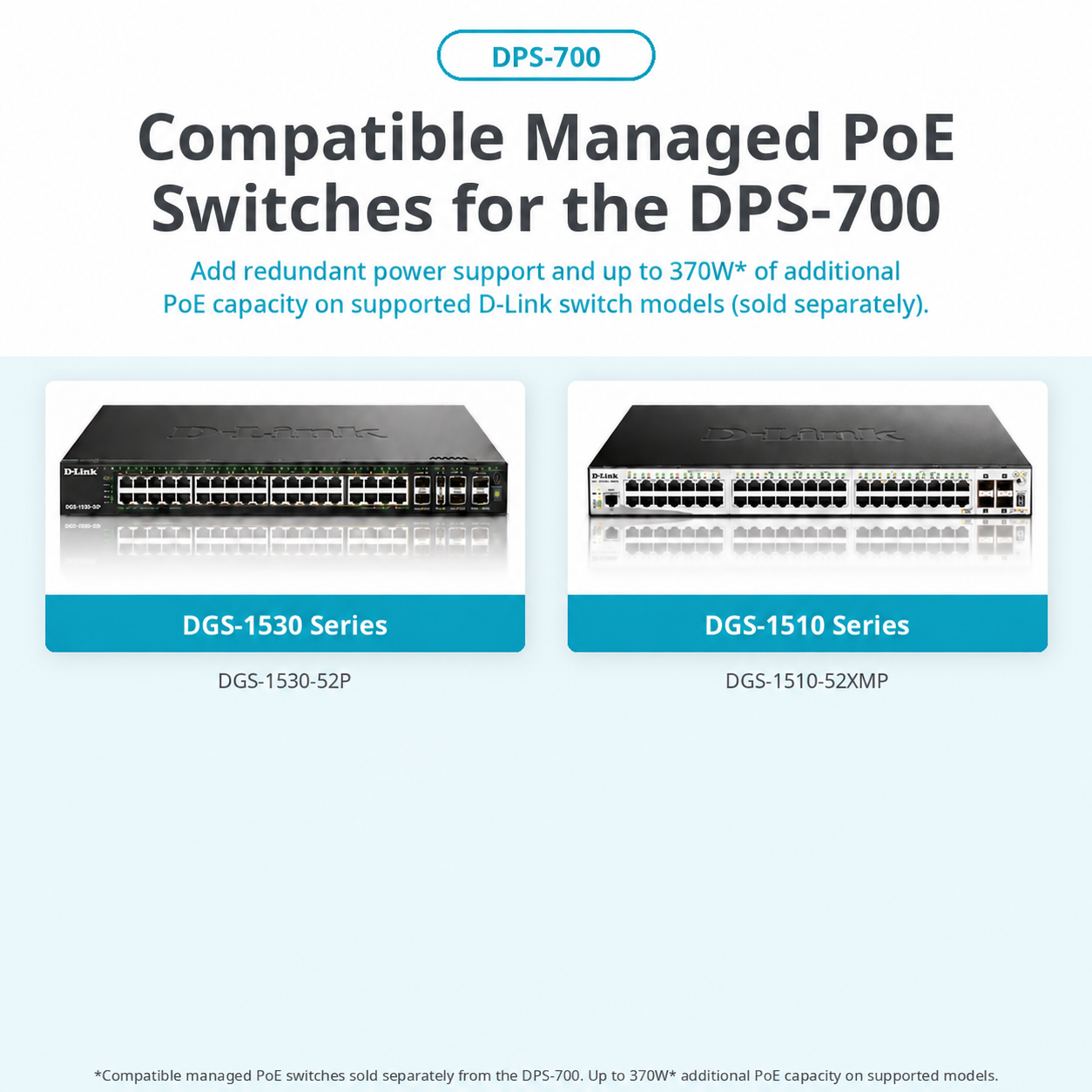

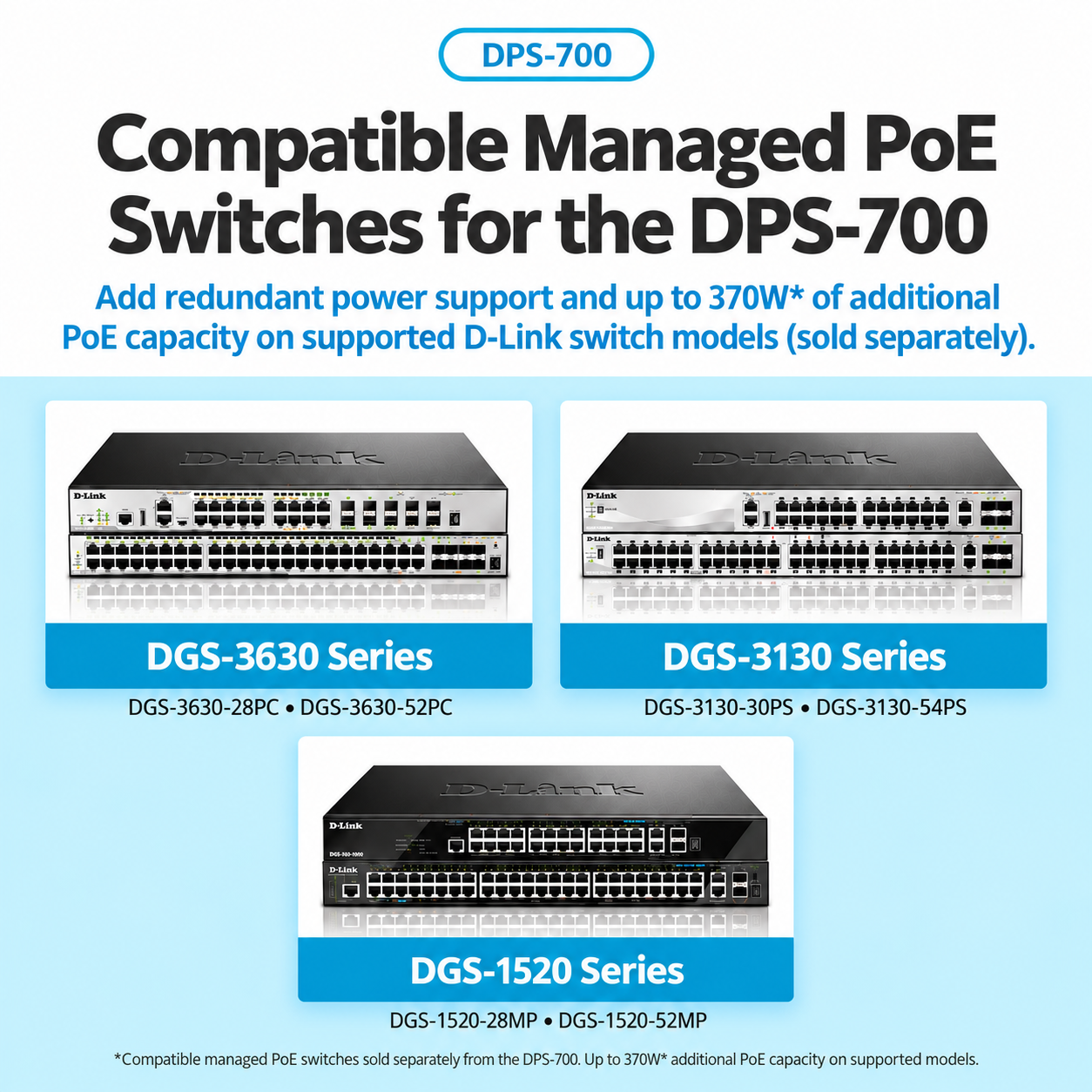

Compatible POE MANAGED SWITCHES FOR the DPS-700

Compatible D-Link PoE Managed Switches

Compatible D-Link PoE Managed Switches: Supports DGS-3130-30PS, DGS-3130-54PS, DGS-3630-28PC, DGS-3630-52PC, DGS-1520-28MP, DGS-1520-52MP, DGS-1510-52XMP, and DGS-1530-52P.

See below for more info on the PoE Managed Switch Model options the DPS-700 Supports.
Compatible switches sold separately.

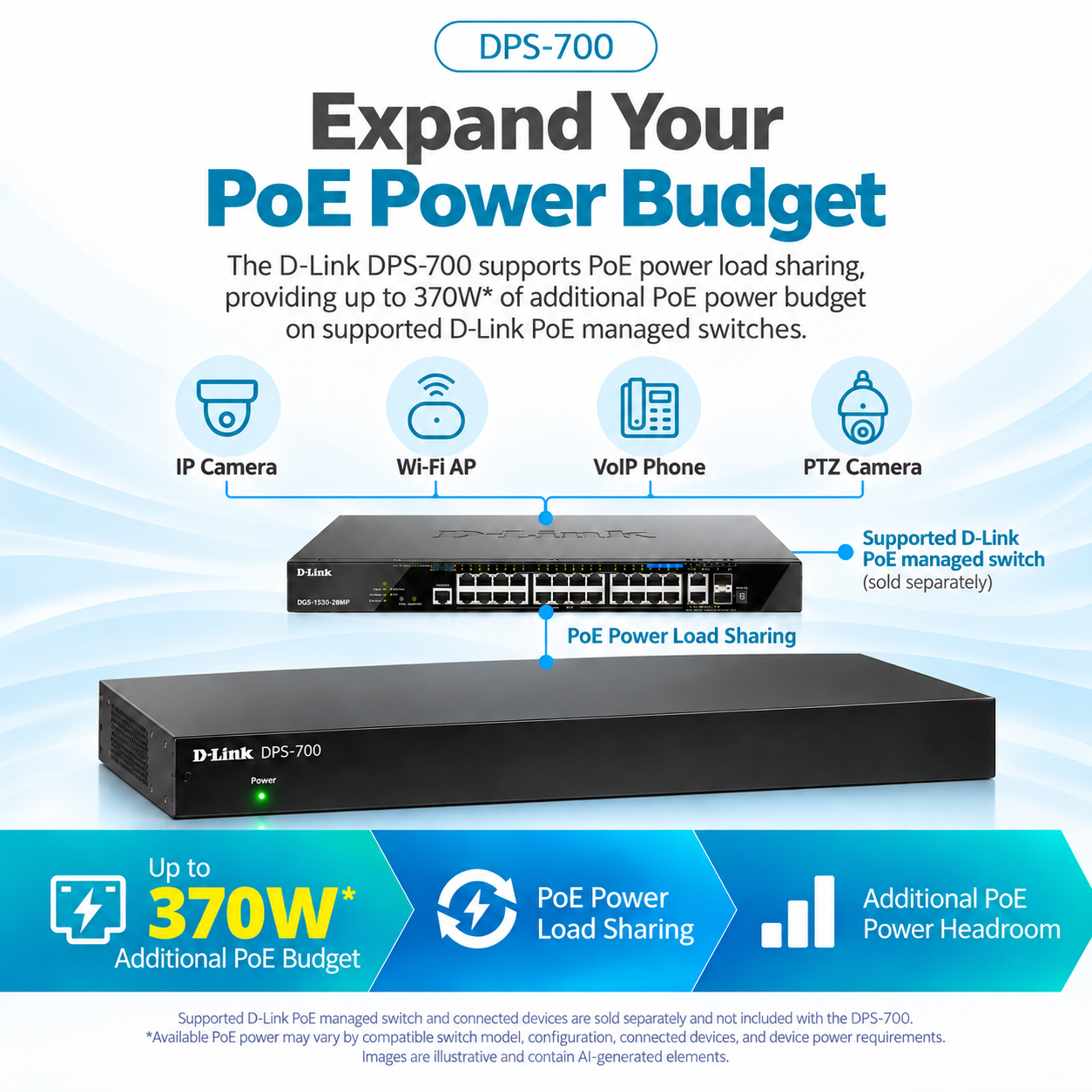

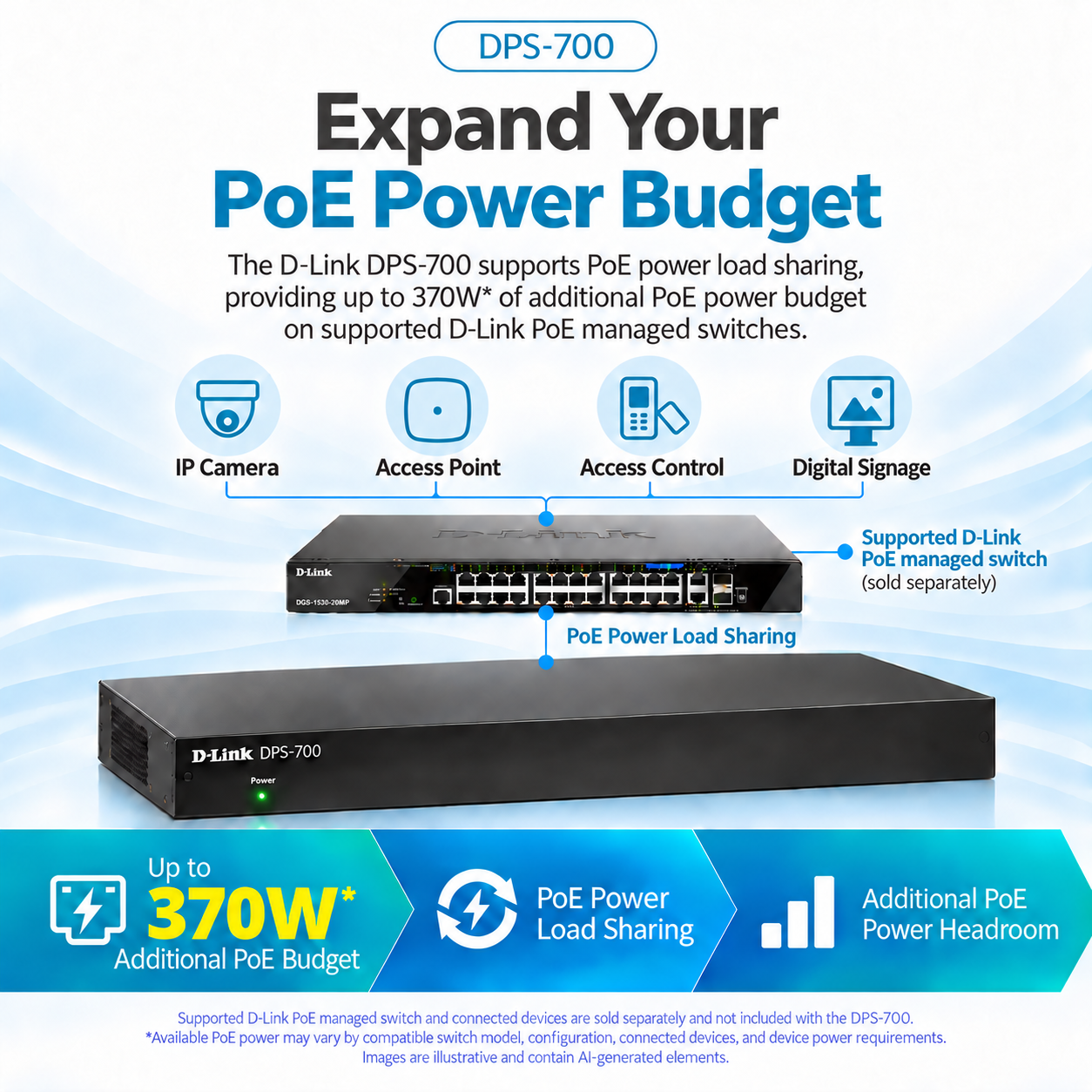

ADDITIONAL POE POWER CAPACITY

Expand Your PoE Power Budget

The D-Link DPS-700 supports PoE power load sharing, providing up to 370W* of additional PoE power budget on supported D-Link PoE managed switches. This added capacity helps support deployments with higher aggregate PoE power requirements

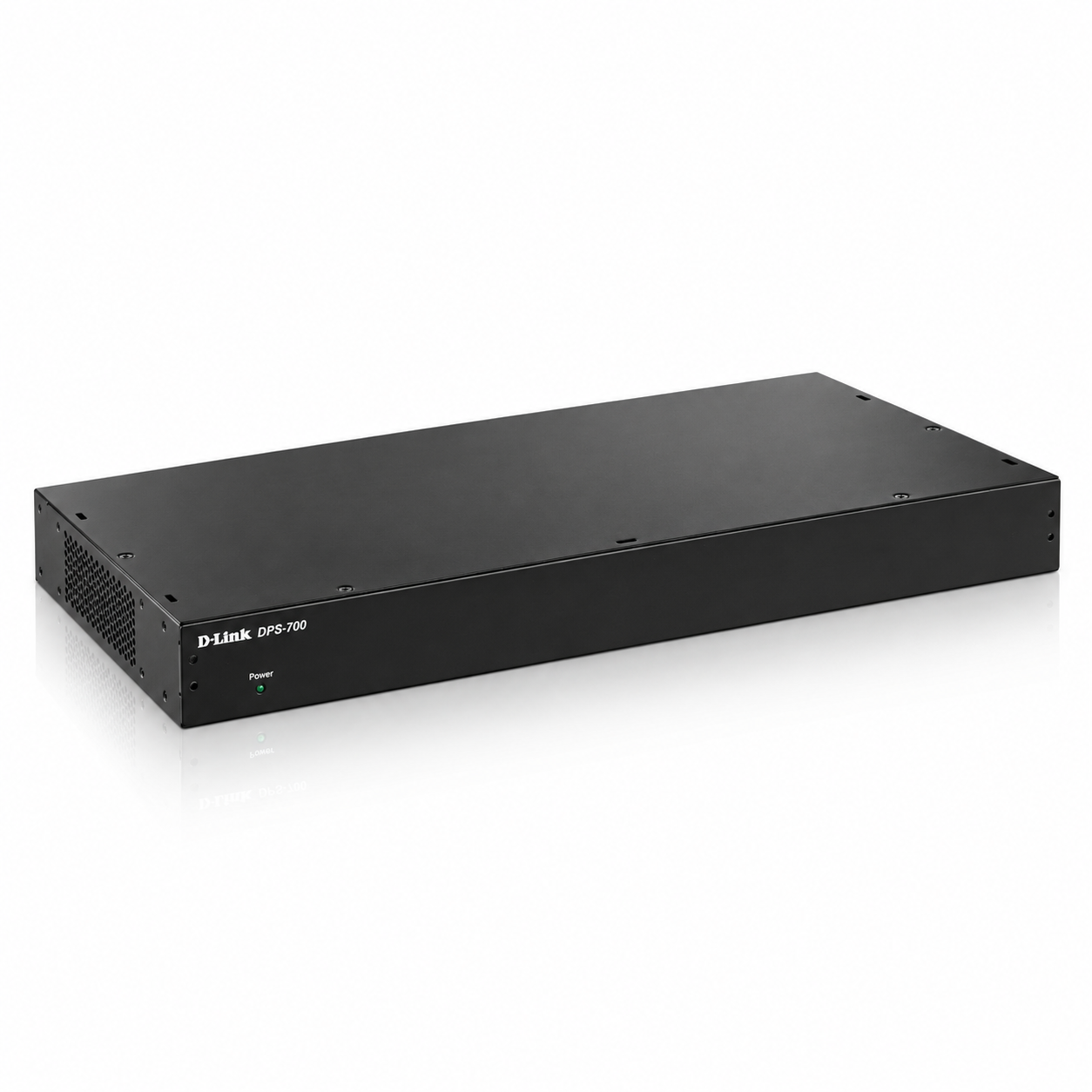

Rack-Ready Design

Rack-Mountable. Ready for Deployment

The D-Link DPS-700 combines a 1U, 19-inch rack-mountable design with a solid metal housing, LED status indicators, and up to 589W* of total output power for supported D-Link PoE switching environments

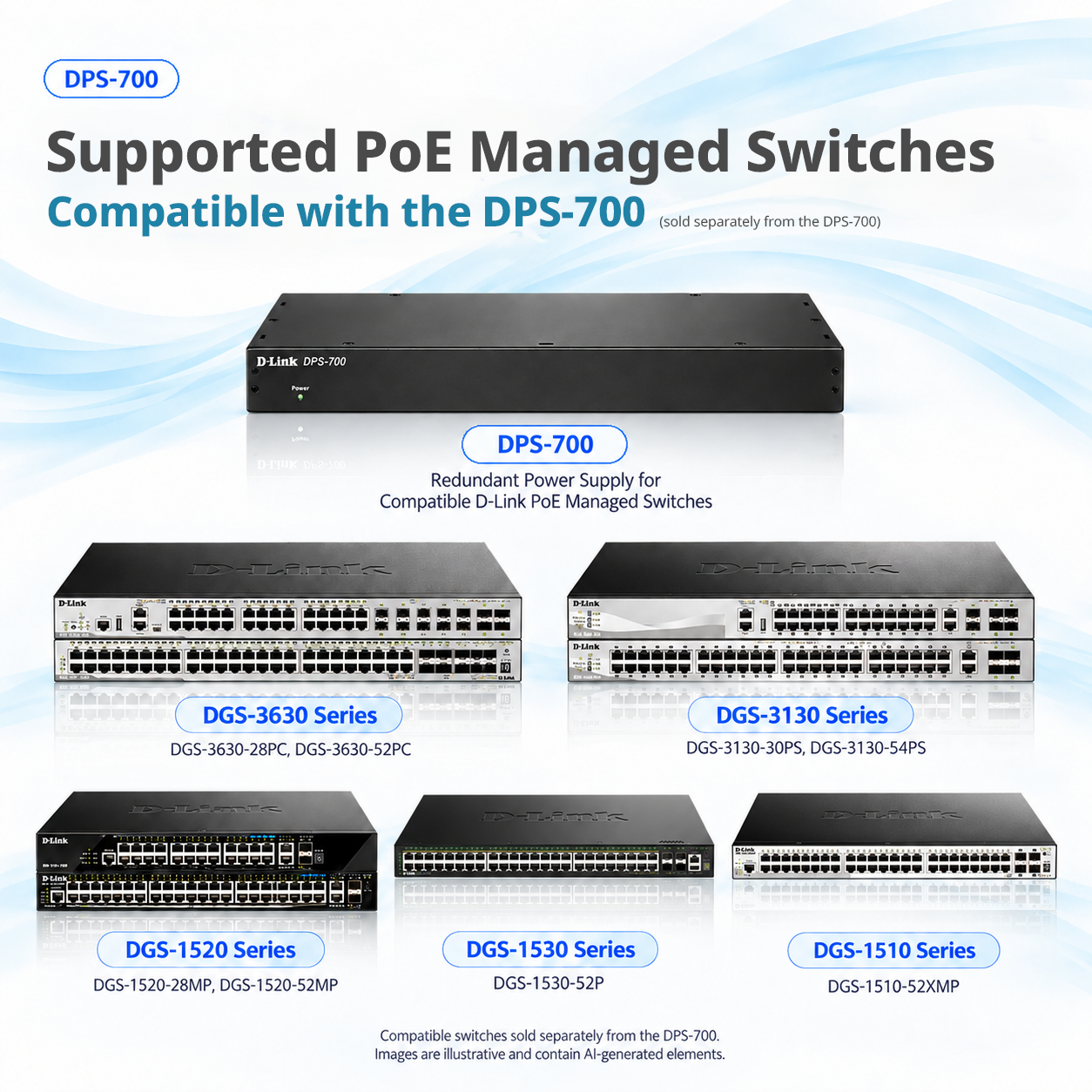

DPS-700 Compatible D-Link PoE Managed Switches

Pair the DPS-700 Redundant Power Supply with the supported switch models below to add redundant power failover support and up to 370W* of additional PoE power budget through PoE power load sharing.

All listed switches support physical stacking; maximum stack size varies by model. Compatible switches are sold separately and are not included with the DPS-700.

DGS-3630 Series

Layer 3 Stackable Gigabit PoE+ Switching with 10GbE SFP+ Uplinks

DGS-3630-28PC

Great for:

Core or distribution networks

Layer 3: Routing included; optional license expands advanced features

Application: Aggregate PoE access switches over 10GbE SFP+ uplinks

License: Optional advanced routing license

PoE Ports 20 × 1GbE PoE+
4 × 1GbE PoE+/SFP Combo

10GbE 4 × 10GbE SFP+

Stacking Up to 9 switches

PoE Power Budget

Up to 370W* → Up to 740W* with DPS-700

View Product Datasheet

DGS-3630-52PC

Great for:

Core or distribution networks

Layer 3: Routing included; optional license expands advanced features

Application: Aggregate PoE access switches over 10GbE SFP+ uplinks

License: Optional advanced routing license

PoE Ports 44 × 1GbE PoE+
4 × 1GbE PoE+/SFP Combo

10GbE 4 × 10GbE SFP+

Stacking Up to 9 switches

PoE Power Budget

Up to 370W* → Up to 740W* with DPS-700

View Product Datasheet

DGS-3130 Series

Layer 3 Stackable Gigabit PoE+ Switching with 10GbE Copper & SFP+ Uplinks

DGS-3130-30PS

Great for:

Gigabit PoE access where the uplink may be copper or fiber

Layer 3: Dynamic routing: RIP/RIPng and OSPF

Application: Connect 24 Gigabit PoE+ endpoints, then choose 10GBASE-T copper or 10GbE SFP+ fiber for upstream connectivity

PoE Ports 24 × 1GbE PoE+

10GbE 2 × 10GBASE-T
4 × 10GbE SFP+

Stacking Up to 9 switches

PoE Power Budget

Up to 370W* → Up to 740W* with DPS-700

View Product Datasheet

DGS-3130-54PS

Great for:

Higher-density Gigabit PoE access where the uplink may be copper or fiber

Layer 3: Dynamic routing: RIP/RIPng and OSPF

Application: Connect 48 Gigabit PoE+ endpoints, then choose 10GBASE-T copper or 10GbE SFP+ fiber for upstream connectivity

PoE Ports 48 × 1GbE PoE+

10GbE 2 × 10GBASE-T
4 × 10GbE SFP+

Stacking Up to 9 switches

PoE Power Budget

Up to 370W* → Up to 740W* with DPS-700

View Product Datasheet

DGS-1520 Series

Layer 3 Stackable Multi-Gigabit PoE+ Switching with 2.5GbE Access & 10GbE Uplinks

DGS-1520-28MP

Great for:

Access networks with a mix of Gigabit and 2.5GbE PoE devices

Layer 3: Advanced dynamic routing and multicast (OSPF, RIP and PIM)

Application: Connect up to four 2.5GbE PoE+ devices alongside Gigabit PoE+ devices

PoE Ports 20 × 1GbE PoE+
4 × 2.5GbE PoE+

10GbE 2 × 10GBASE-T
2 × 10GbE SFP+

Stacking Up to 8 switches

PoE Power Budget

Up to 370W* → Up to 740W* with DPS-700

View Product Datasheet

DGS-1520-52MP

Great for:

Access networks with a mix of Gigabit and 2.5GbE PoE devices

Layer 3: Advanced dynamic routing and multicast (OSPF, RIP and PIM)

Application: Connect up to four 2.5GbE PoE+ devices alongside Gigabit PoE+ devices

PoE Ports 44 × 1GbE PoE+
4 × 2.5GbE PoE+

10GbE 2 × 10GBASE-T
2 × 10GbE SFP+

Stacking Up to 8 switches

PoE Power Budget

Up to 370W* → Up to 740W* with DPS-700

View Product Datasheet

DGS-1530 Series

Layer 3 Lite Stackable Gigabit PoE+ Switching with 10GbE SFP+ Uplinks

DGS-1530-52P

Great for:

Repeatable deployments of 48-port Gigabit PoE switches

Layer 3: Static routing

Application: In a school, office or hotel network, use ZTP to retrieve settings through DHCP and download firmware or configuration files from TFTP

PoE Ports 48 × 1GbE PoE+

10GbE 4 × 10GbE SFP+

Stacking Up to 9 switches

PoE Power Budget

Up to 370W* → Up to 740W* with DPS-700

View Product Datasheet

DGS-1510 Series

Layer 3 Lite Stackable Smart Managed Gigabit PoE+ Switching with 10GbE SFP+ Uplinks

DGS-1510-52XMP

Great for:

IP surveillance networks that benefit from camera discovery and a surveillance-focused management view

Layer 3: Static routing between VLANs

Application: Surveillance Mode detects ONVIF-compatible cameras and places them in a surveillance VLAN; PD-Alive can reset PoE power when a device is inactive. Standard Mode is available for general switch management

PoE Ports 48 × 1GbE PoE+

10GbE 4 × 10GbE SFP+

Stacking Up to 6 switches

PoE Power Budget

Up to 370W* → Up to 740W* with DPS-700

View Product Datasheet

*Maximum PoE power availability may vary by compatible switch model, configuration, connected devices, and device power requirements. DPS-700 provides up to 370W of additional PoE power budget on supported D-Link PoE switches. Refer to the applicable product datasheet for configuration and compatibility details. Compatible switches are sold separately and are not included with the DPS-700.

What does the D-Link DPS-700 do?

The D-Link DPS-700 is a redundant power supply for compatible D-Link PoE managed switches. It provides an additional power source alongside the switch's internal power supply to support redundant power failover. On supported models, it also supports PoE power load sharing, providing up to 370W* of additional PoE power budget.

Does the DPS-700 provide both redundant power support and additional PoE power?

Yes. These are separate capabilities. Redundant power failover support helps support power availability if the switch's internal power supply is interrupted. PoE power load sharing can provide up to 370W* of additional PoE power budget on supported switch models.

Redundant power failover and PoE power load sharing are separate functions. The up to 370W figure describes the additional PoE power budget available through supported load-sharing configurations.

Why would I add redundant power to a PoE switch?

A PoE switch may support both network connectivity and power for multiple connected devices. The D-Link DPS-700 provides an additional power source for compatible D-Link PoE managed switches, helping support power availability and network continuity in the event of an internal power supply interruption.

How much additional PoE power can the D-Link DPS-700 provide?

Through PoE power load sharing, the D-Link DPS-700 can provide up to 370W* of additional PoE power budget on supported D-Link PoE switches.

Available PoE power may vary by compatible switch model, configuration, connected devices, and device power requirements.

What does the 589W output rating mean?

The D-Link DPS-700 has a maximum total output rating of 589W*. On supported switch models, the up to 370W* of additional PoE power budget is provided through PoE power load sharing. These figures describe different power specifications and should not be added together.

Which D-Link switches are compatible with the D-Link DPS-700?

Compatible models include: DGS-1510-52XMP, DGS-1520-28MP, DGS-1520-52MP, DGS-3130-30PS, DGS-3130-54PS, DGS-3630-28PC, DGS-3630-52PC, and DGS-1530-52P.

Compatible switches are sold separately unless specified as part of a bundle. Refer to the applicable product datasheet and compatibility information before installation.

How does the D-Link DPS-700 connect to a supported switch?

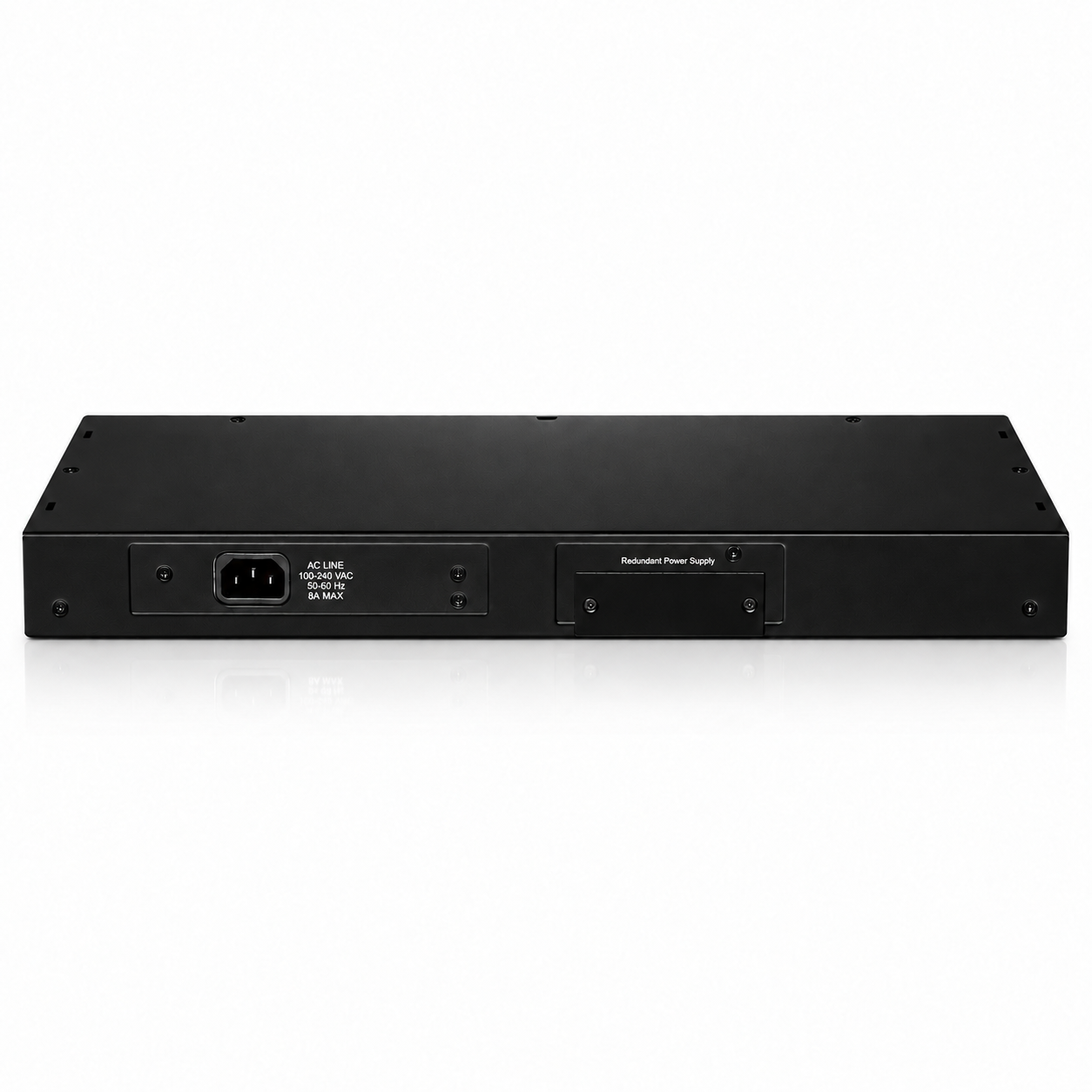

The DPS-700 connects through the dedicated redundant power interface on a compatible D-Link PoE managed switch. For supported models, it is designed to integrate while maintaining the existing LAN switch configuration.

Follow the applicable installation instructions and compatibility requirements for the supported switch model.

Does the D-Link DPS-700 carry network data?

No. Network data continues to pass through the compatible D-Link switch. The DPS-700 provides redundant power support and, on supported models, additional PoE power budget through PoE power load sharing.

Where would the D-Link DPS-700 typically be used?

The D-Link DPS-700 is well suited for compatible D-Link PoE switching deployments where redundant power support or additional PoE power budget is part of the network plan, including surveillance, access control, business networks, education and campus networks, multi-dwelling properties, network closets and IDFs, and high-density PoE deployments.

Can the D-Link DPS-700 be installed in a standard network rack?

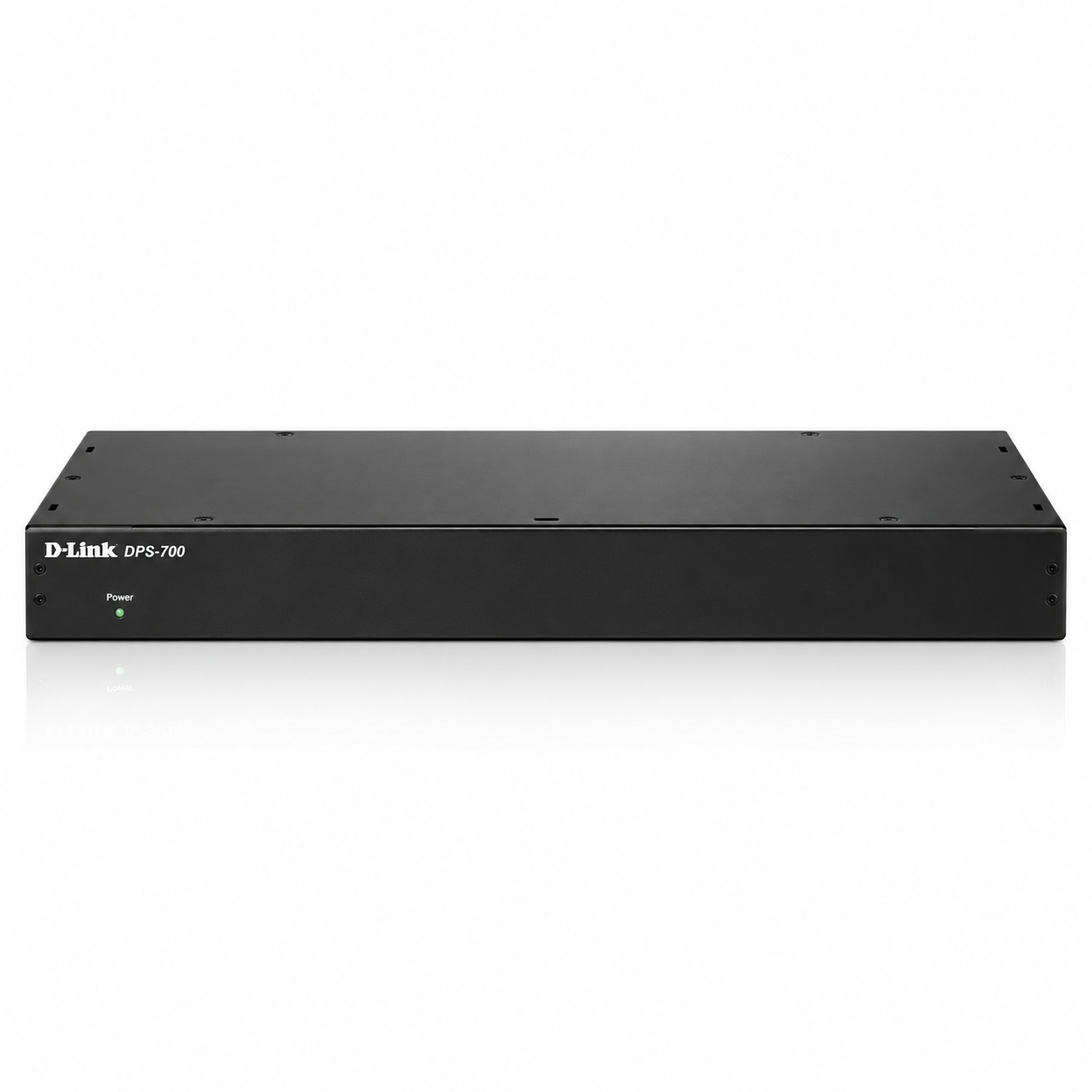

Yes. The D-Link DPS-700 features a 1U, 19-inch rack-mountable design with a solid metal housing and LED status indicators.

Does the D-Link DPS-700 include the cable needed to connect to a compatible switch?

Yes. The DPS-700 includes a 39-inch (1 m) DC power cable used to connect the DPS-700 to the dedicated redundant power interface of a compatible D-Link switch.

Follow the applicable product documentation for installation and compatibility requirements.

*Maximum total output power is up to 589W. On supported D-Link PoE switches, the DPS-700 can provide up to 370W of additional PoE power budget through PoE power load sharing. These figures describe different power specifications and should not be added together. Available PoE power may vary by compatible switch model, configuration, connected devices, and device power requirements. Refer to the applicable product datasheet for compatibility, configuration, and power specifications.

Core-to-Edge Switching Solutions

Network requirements change from the core to the edge/access layer. D-Link switching supports high-speed core and aggregation, building distribution, Multi-Gigabit PoE edge/access, and industrial switching for outdoor and remote locations.
