D-Link Systems, Inc.
HIGHLIGHTS: Built-In Traffic Optimization, Fanless Metal Housing, Desktop/Wall-Mount, LED Speed Indicators, Limited Lifetime Warranty
Couldn't load pickup availability
*Theoretical maximum wired connection speed is up to 2.5GbE per port. PoE power is shared across all eight ports, with up to 90W supplied at an individual switch port (PSE) and up to 230W total across the switch. For IEEE 802.3bt Type 4, Class 8, up to 71.3W is available at the powered device (PD); actual power delivery may vary based on connected devices, cabling, network conditions and device power requirements. Connect only IEEE 802.3af/at/bt-compliant PoE devices. Internet service, media cabinets, connected devices are not included with DMS-108P
For business-class solutions, reseller pricing, distribution availability and partner access program, Please reach out to our business solutions team:(888)354-6574 or solutions@us.dlink.com
| Switch Type | |
|---|---|
| Form Factor | |
| Number of Ports | |
| Switching Capacity | |
| Maximum Forwarding Rate | |
| MAC Address Table Size | |
| Packet Buffer | |
| Flash Memory | |
| Number of PoE Ports | |
| Max PoE Budget | |
| Maximum Power Consumption | |
| Heat Dissipation | |
| Weight | |
| Dimensions | |
| VLAN | N/A |
| IGMP Snooping | |
| Green Technology |
US Domestic Orders To Contiguous 49 States
Shipping Methods and Rates
|
Order Amount |
Fedex SmartPost |
Estimated Arrival Time |
|
Over $30.00 |
FREE |
5-7 business days |
Shipping Timeline
D-Link Holidays
Packages will not be processed or shipped on the following acknowledged holidays.
|
Holiday |
Acknowledged Date |
|
New Year’s Day |
Monday, January 1, 2024 |
|
President’s Day |
Monday, February 19, 2024 |
|
Good Friday |
Friday, March 29, 2024 |
|
Memorial Day |
Monday, May 27, 2024 |
|
Fourth of July |
Thursday, July 4, 2024 |
|
Labor Day |
Monday, September 2, 2024 |
|
Thanksgiving Day |
Thursday, November 28, 2024 |
|
Day after Thanksgiving |
Friday, November 29, 2024 |
|
Christmas Day |
Wednesday, December 25, 2024 |
|
New Year's Eve |
Tuesday, December 31, 2024 |
Additional Information
Returns - Physical Products
Products purchased directly from the official shop.us.dlink.com site may be returned within 30 days of the delivery date, subject to the terms and conditions below.
To initiate a return, customers must contact D-Link to obtain a Return Merchandise Authorization (RMA) and return instructions. Returns received without an approved RMA may not be processed.
Returned products must be received in good condition and include:
We strongly recommend including the original packaging and documentation. If items are missing, damaged, or show signs of excessive use, the refund amount may be reduced accordingly.
--
Restocking Fees
Returned products may be subject to a restocking fee of up to 15%, at D-Link’s discretion, based on product condition, completeness, and the nature of the return.
--
Return Shipping
Unless the product is confirmed or deemed defective by the D-Link technical support team, or the return is due to a shipping error by D-Link, the customer is responsible for return shipping costs.
We recommend using a carrier that provides a tracking number. D-Link is not responsible for items that are lost or damaged in transit.
--
Defective or Incorrect Products
If a product is confirmed or deemed defective by the D-Link technical support team, or an incorrect item was shipped, D-Link will provide return instructions and cover applicable return shipping costs.
--
Refund Processing
Approved refunds will be issued to the original payment method once the returned product has been received and inspected.
--
Refund Timing
Refunds are typically processed within seven (7) to ten (10) business days of D-Link’s receipt of the returned product. Please note that your financial institution may take additional time to post the refund to your account.
--
Final Sale Items
Products clearly marked as Final Sale are not eligible for return, exchange, or refund.
--
Services
All sales of services, including technical support or service plans, are final and non-refundable.
Consumer Rights
Nothing in this policy limits any rights you may have under applicable consumer protection laws that vary by state.
To start a return:
Use the contact methods available at: https://support.dlink.com/search.aspx
Today’s faster internet connections and growing number of connected devices are changing what home, office, and professional networks need to handle - from Wi-Fi access points and IP cameras to digital signage, kiosks, smart lighting, AV equipment, and more. The D-Link DMS-108P brings them together with 8 Multi-Gigabit Ethernet ports supporting up to 2.5GbE per port* and PoE++ across all eight ports. Its compact, fanless metal design also makes it easier to place on desktops, in wall-mount installations, AV/media cabinets, and other space-conscious environments.
Its ports support IEEE 802.3af/at/bt PoE. An IEEE 802.3bt Type 4 PSE port can supply up to 90W* at the switch. For an IEEE 802.3bt Class 8 powered device (PD), up to 71.3W* is available at the device.

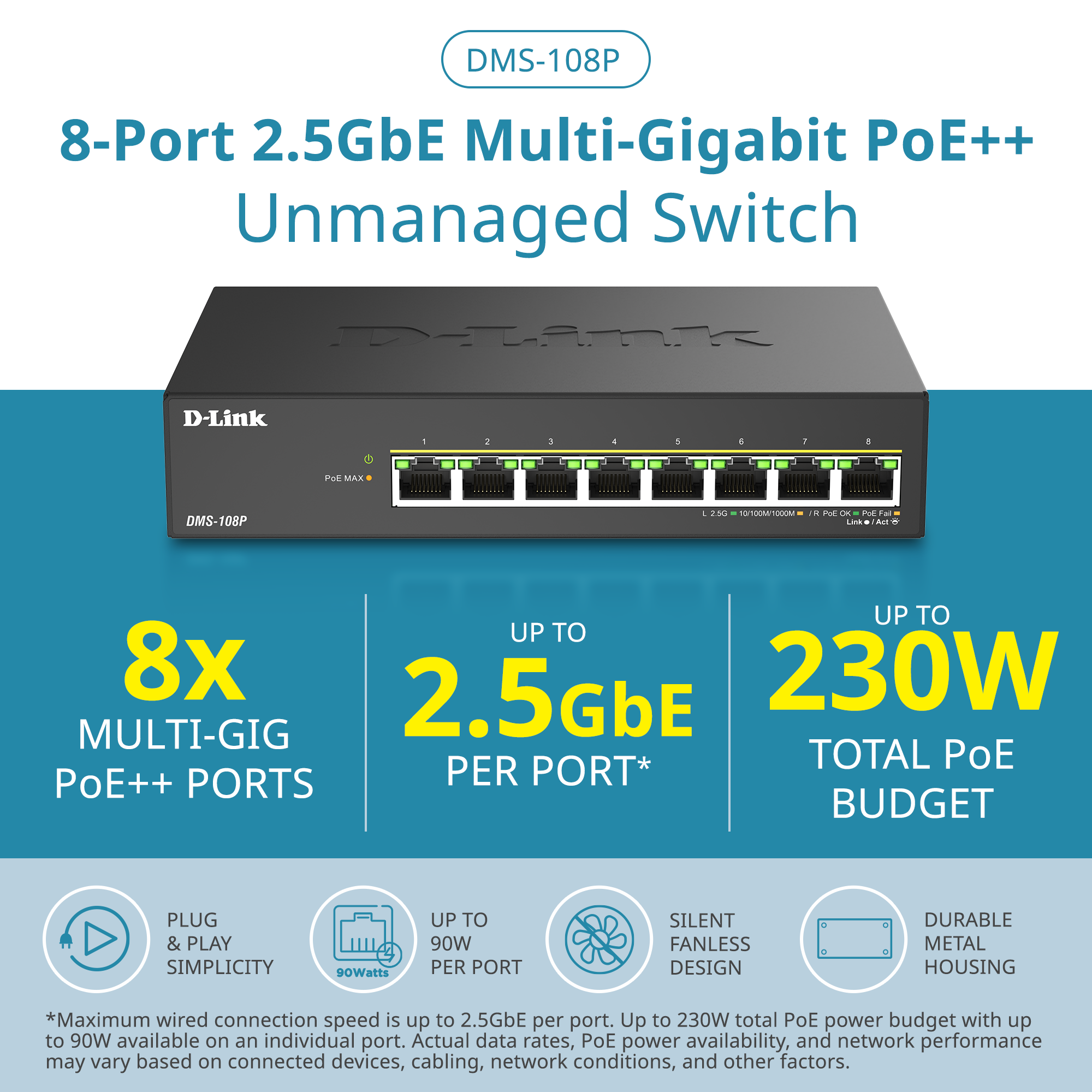

With up to 230W* of total PoE power, up and up to 40 Gbps* of switching capacity, the D-Link DMS-108P helps support multiple powered devices and demanding network activity at the same time.
The compact, fanless metal design supports desktop, wall-mount, and other space-conscious installations. The DMS‑108P operates as an unmanaged switch, so no software or switch configuration is required.
For U.S. public-sector and enterprise deployments, the DMS-108P follows NDAA/TAA sourcing standards.
Surveillance & Security • Connected Spaces • Business & Office Networks • Retail & Hospitality • Pro AV & Smart Homes • Home Networks & Home IT Labs • Education & Shared Spaces • Multi-Dwelling Units • IT & Low-Voltage Installations • Government & Public Sector
* Theoretical maximum wired connection speed is up to 2.5GbE per port. PoE power is shared across all eight ports, with up to 90W supplied at an IEEE 802.3bt Type 4 PSE port and up to 230W total across the switch. For an IEEE 802.3bt Class 8 PD, up to 71.3W is available at the powered device. Actual power delivery varies with the connected device, negotiated power level, and cabling. Connect only devices compatible with IEEE 802.3af/at/bt PoE. Connected devices and other equipment are sold separately.
*PoE power is shared across all eight ports, with up to 230W total. Under IEEE 802.3bt Type 4, a port can supply up to 90W from the switch; up to 71.3W is available at a compatible Class 8 powered device after cable loss. Actual power depends on the connected device and cabling. Connect IEEE 802.3af/at/bt-compliant PoE devices.
The up to 90W and 71.3W figures describe the PoE standard’s maximum power at the switch and device ends of the link.

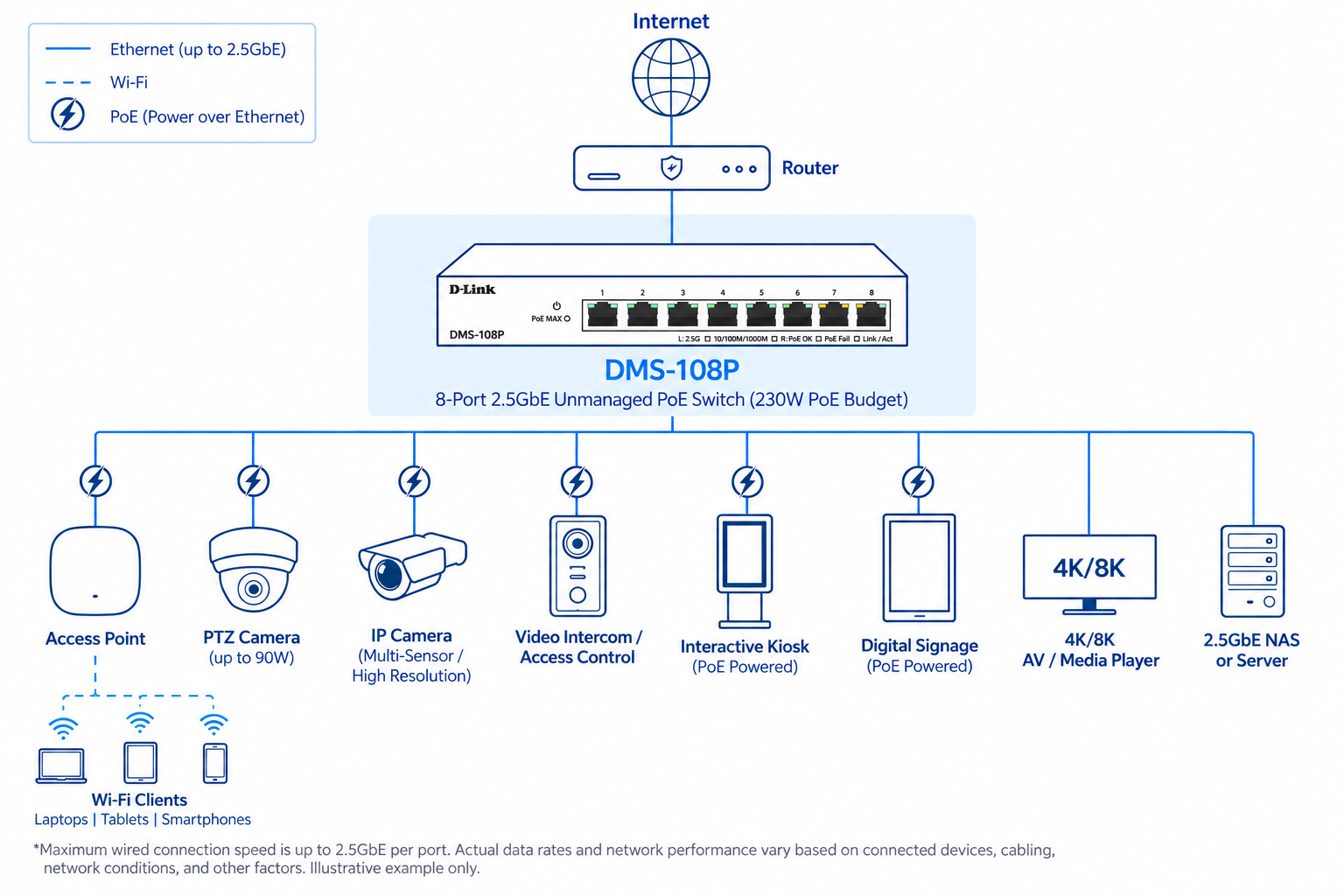

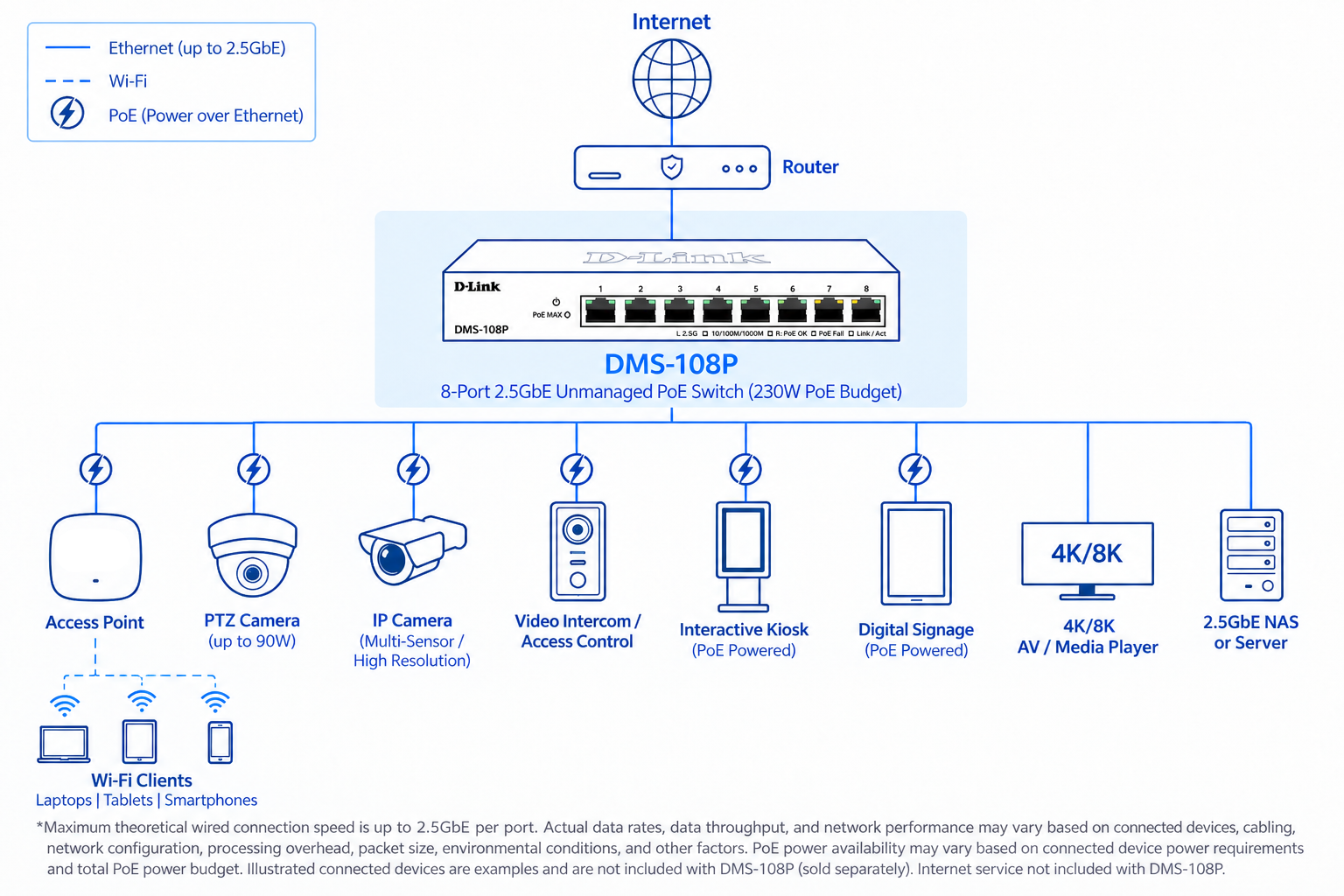

All eight Ethernet ports support up to 2.5GbE* and IEEE 802.3af/at/bt PoE. Connect IEEE 802.3af/at/bt-compliant PoE devices, including Wi-Fi access points, IP/PTZ cameras, digital signage, kiosks, smart lighting, and other PoE equipment.
Under IEEE 802.3bt Type 4, an individual port supplies up to 90W* at the switch (PSE); up to 71.3W* is available at an IEEE 802.3bt Class 8 powered device (PD). The switch’s total PoE budget of up to 230W* is shared across all eight ports.
With up to 40 Gbps* of switching capacity, the D-Link DMS-108P supports simultaneous network traffic across multiple connected devices.

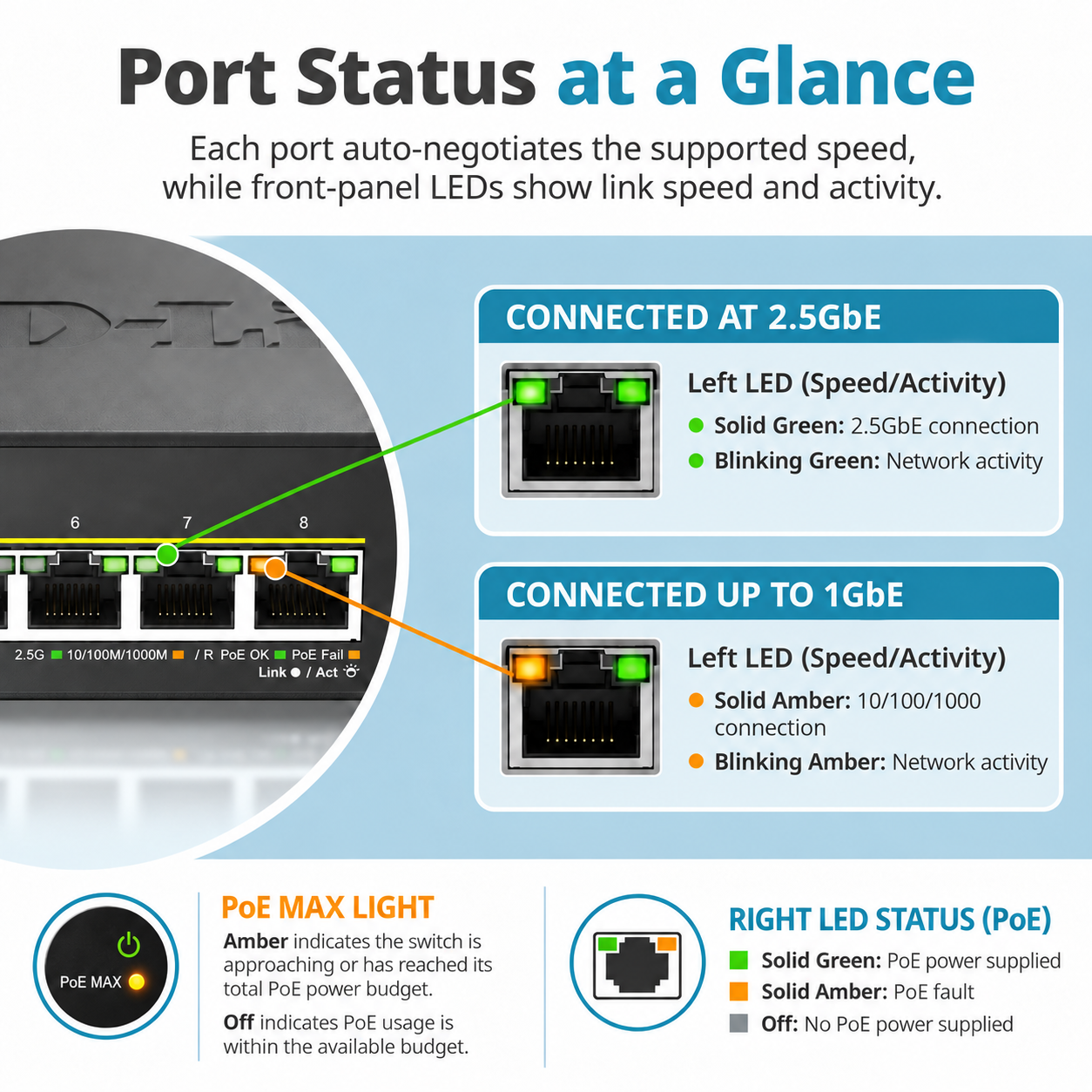

Automatic speed negotiation supports existing 1GbE and up to 2.5GbE connections, so Gigabit equipment and newer Multi-Gigabit devices can operate on the same switch. This helps support Wi-Fi Access points, surveillance, shared storage, file transfers, streaming, gaming, AV, and other bandwidth-intensive applications.
* Internet service not included with DMS-108P
The D-Link DMS-108P includes built-in traffic features that help keep your network running smoothly across connected devices. IEEE 802.1p QoS helps prioritize important traffic, IGMP Snooping helps manage multicast traffic, and IEEE 802.3x Flow Control helps manage congestion. These features work automatically, with no software configuration required.
How to read the chart: The PSE figure is the maximum power supplied by the switch. The PD figure is the maximum power available at the device end of the link. The difference reflects power lost through the cable channel.
| Class | IEEE Type | Maximum PSE Output | Maximum Power Available at PD | Power Pairs |
|---|---|---|---|---|
| Class 0 | Type 1 IEEE 802.3af |
15.4 W | 12.95 W | 2-pair |
| Class 1 | Type 1 IEEE 802.3af |
4.0 W | 3.84 W | 2-pair |
| Class 2 | Type 1 IEEE 802.3af |
7.0 W | 6.49 W | 2-pair |
| Class 3 | Type 1 IEEE 802.3af |
15.4 W | 12.95 W | 2-pair |
| Class 4 | Type 2 IEEE 802.3at |
30.0 W | 25.5 W | 2-pair |
| Class 5 | Type 3 IEEE 802.3bt |
45.0 W | 40.0 W | 4-pair |
| Class 6 | Type 3 IEEE 802.3bt |
60.0 W | 51.0 W | 4-pair |
| Class 7 | Type 4 IEEE 802.3bt |
75.0 W | 62.0 W | 4-pair |
| Class 8 DMS-108P highlighted level | Type 4 IEEE 802.3bt |
90.0 W | 71.3 W | 4-pair |
IEEE class figures show maximum PSE output and maximum power available at the PD under standard-compliant cabling conditions. Cable loss affects power available at the PD; it does not change the switch's rated maximum PSE output. Actual power delivery depends on device negotiation and cabling.
DMS-108P shared PoE budget: Up to 230W across all eight ports. The shared budget means 90W is not available simultaneously on every port.
Choose a project type, then start your project. In the planner, enter each device’s maximum PSE watts (switch-side output) using its IEEE PoE Type/Class and the chart below. The calculator totals these values against the DMS-108P’s 230W PoE budget.
Planning reference only. Confirm each device’s IEEE PoE Type/Class before installation. The calculator totals switch-side PSE watts against the DMS-108P’s 230W shared PoE budget; the switch supports up to 90W at an individual port.
Connect compatible wired and PoE devices at up to 2.5GbE per port, with PoE, PoE+, and PoE++ power available across all 8 ports.*

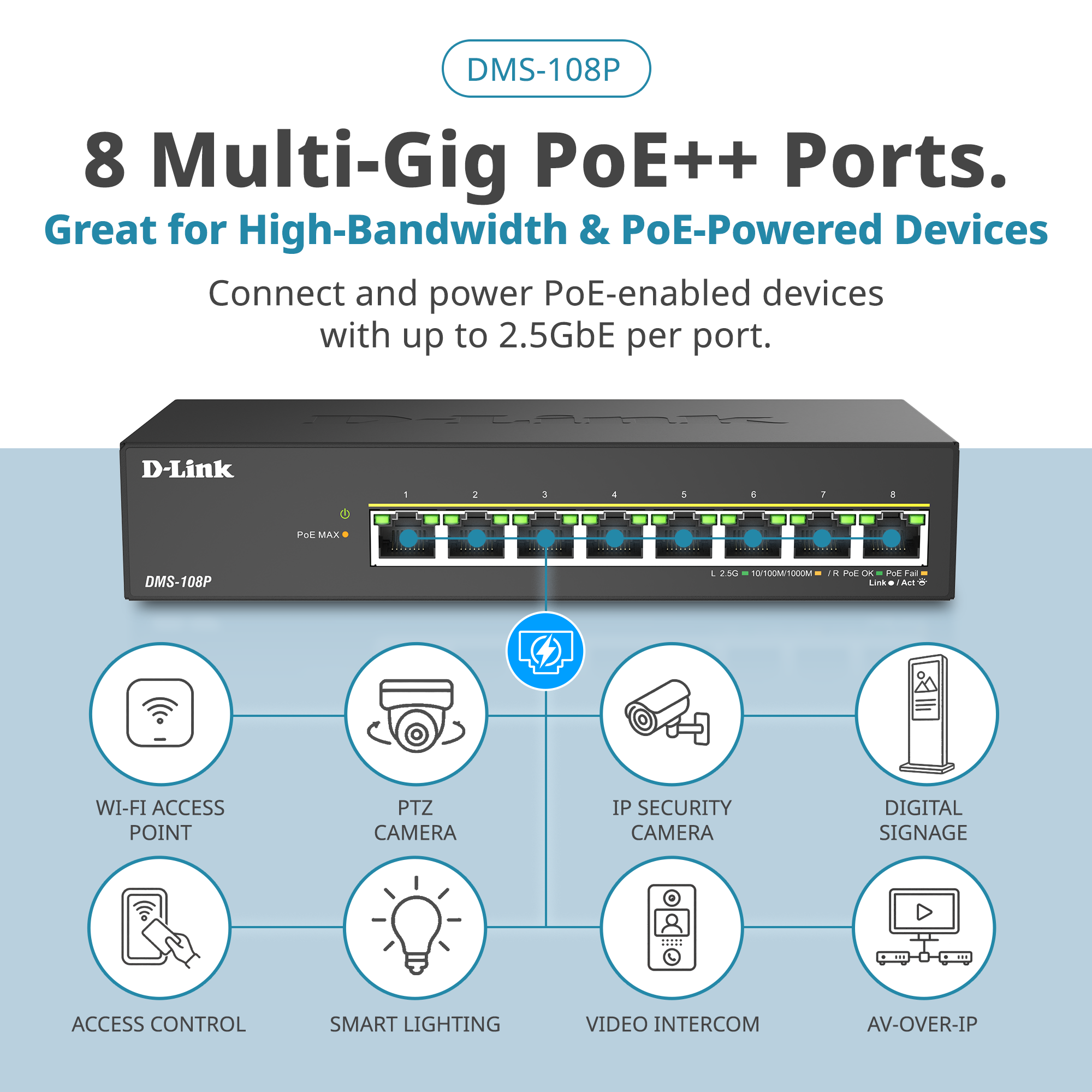

Connect and power a wide range of Ethernet devices, including compatible Wi-Fi access points, PTZ and IP security cameras, digital signage, kiosks, smart lighting, VoIP phones, computers, network storage, and more. All 8 ports support network connections at up to 2.5GbE, and compatible PoE-enabled devices can receive both data and power through the same Ethernet connection.
Yes. All 8 Ethernet ports support 10/100Mbps, 1GbE, and up to 2.5GbE through auto-negotiation. All 8 ports also support PoE, PoE+, and PoE++ for compatible powered devices, with up to 90W per port and up to 230W* total PoE power budget.
The DMS-108P provides up to 230W* total PoE power budget across all 8 ports, giving you flexibility to power a mix of PoE devices from one switch. Each port supports up to 90W of PoE power, making it suitable for compatible higher-power devices such as Wi-Fi access points, PTZ cameras, digital signage, and other PoE-enabled equipment.
PoE power is shared across connected devices within the switch's total 230W PoE power budget.
Yes. The DMS-108P supports PoE, PoE+, and PoE++, allowing compatible devices with different power requirements to connect to the same switch. You can also connect standard non-PoE Ethernet devices—the port simply provides the network connection without PoE power.
In many cases, yes. Cat5e or better Ethernet cabling can support 2.5GbE, helping you upgrade network speeds without necessarily replacing existing cabling. To connect at up to 2.5GbE, the connected device and other network equipment must also support 2.5GbE.
Yes. The DMS-108P is an unmanaged, plug-and-play switch, so there is no software or switch configuration required. Connect the switch to your network, connect your devices, and the DMS-108P automatically negotiates the supported Ethernet speed for each connection.
Simply connect any of the 8 Ethernet ports to a compatible router, firewall, or another Ethernet switch. There is no dedicated uplink port, giving you flexibility in how you connect the DMS-108P to your network. The connection can operate at up to 2.5GbE when the equipment at both ends supports 2.5GbE.
Yes. Built-in features including IEEE 802.1p Quality of Service (QoS), IGMP Snooping, and IEEE 802.3x Flow Control operate without switch configuration. These features help manage prioritized and multicast traffic and support efficient data flow across connected devices.

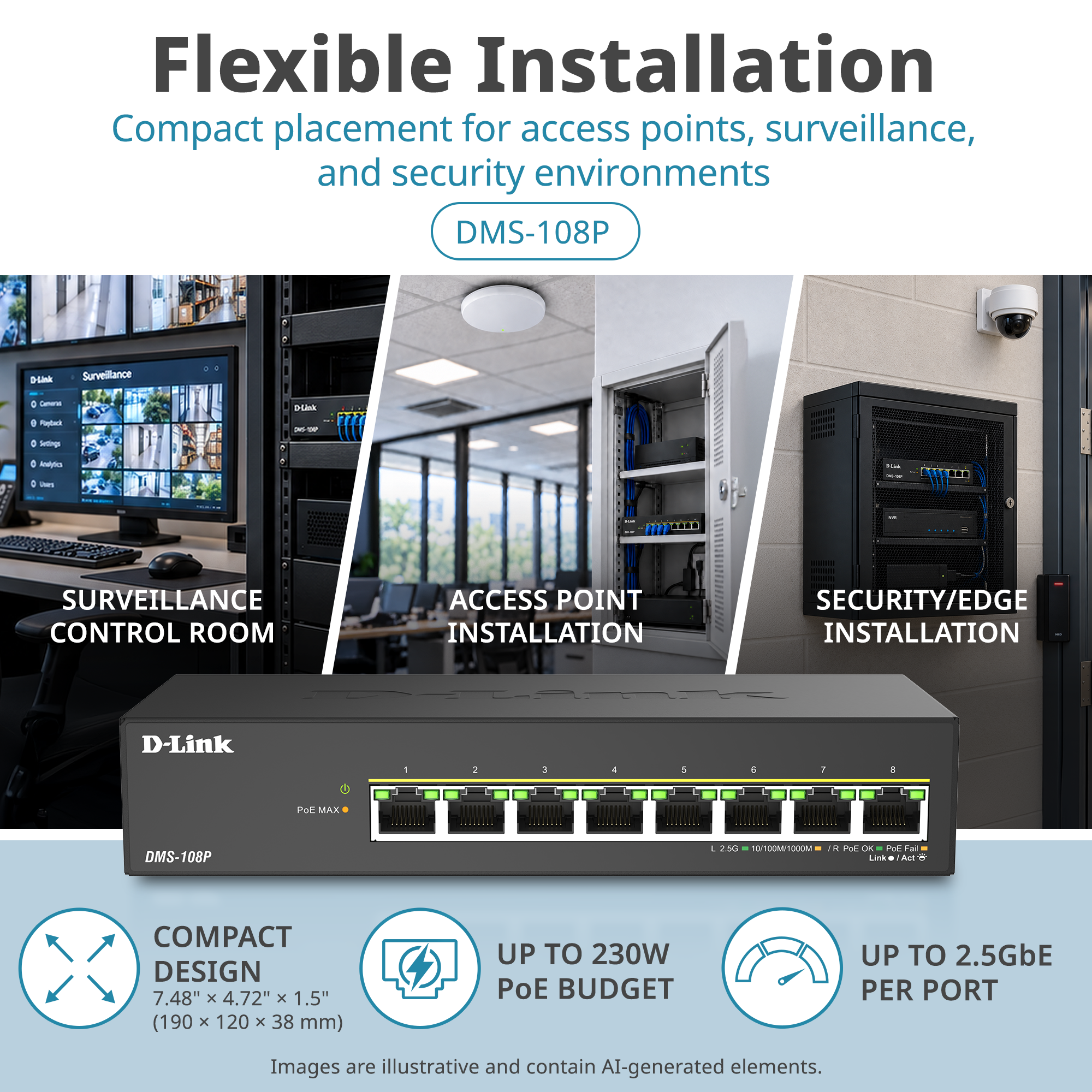

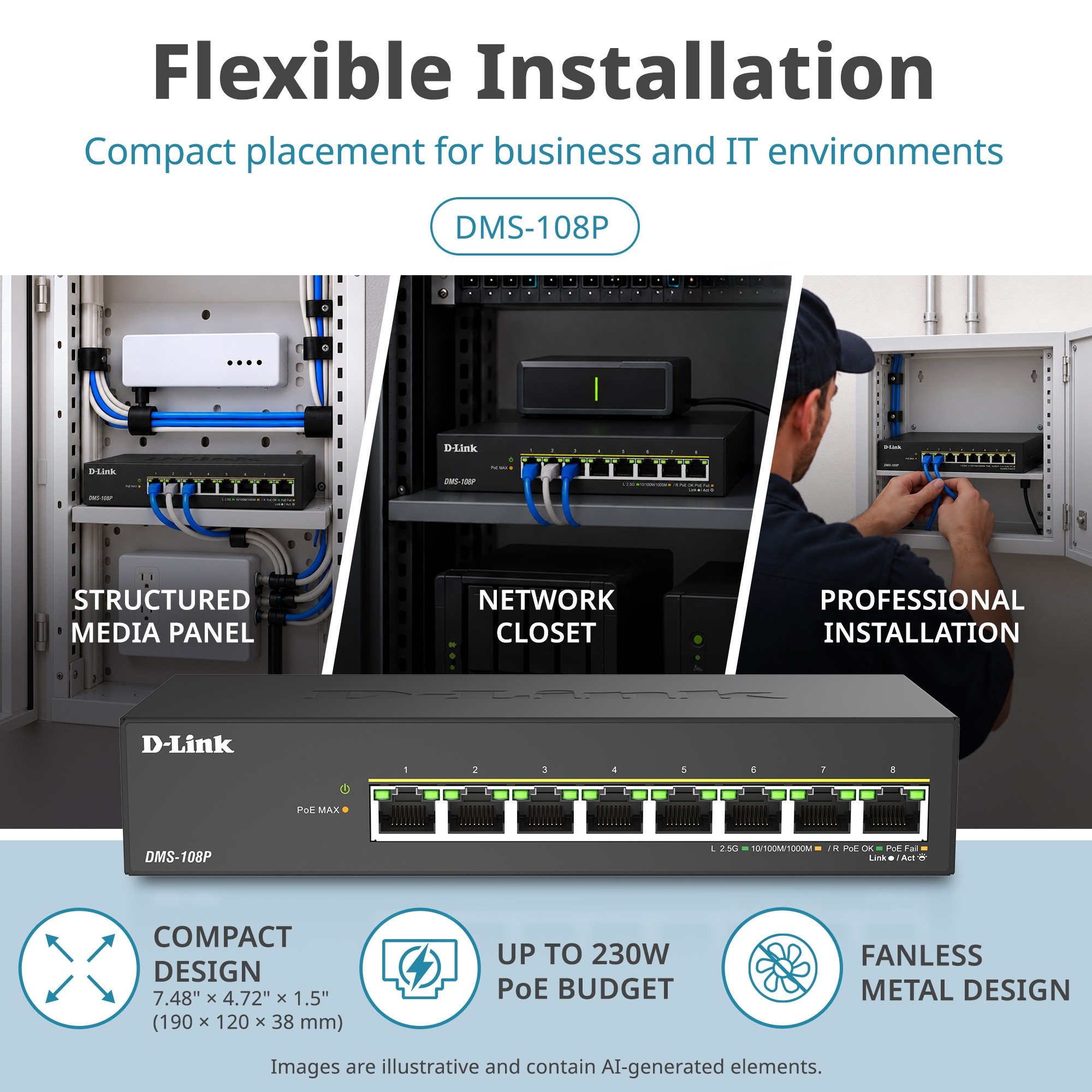

The DMS-108P's compact, fanless metal design provides flexible placement for desktops, walls, network cabinets, AV installations, and other business environments. Fanless operation also helps keep operation quiet in offices and other occupied spaces.
When placing the switch inside a cabinet or enclosure, allow adequate space and ventilation around the unit.
Each DMS-108P port supports network connections at up to 2.5GbE, providing more wired bandwidth than standard Gigabit Ethernet for compatible devices. This can benefit applications such as high-performance Wi-Fi access points, network storage, surveillance, large file transfers, and other bandwidth-intensive network traffic.
Actual speeds depend on connected devices, cabling, network equipment, network conditions, and Internet service.
Compare connectivity, PoE, deployment, and performance.
|
|
|
|
|
|---|---|---|---|---|
| 2.5GbE Ports | 16 × 2.5GbE | 8 × 2.5GbE | 8 × 2.5GbE | 5 × 2.5GbE |
| PoE Type / Ports | — |
PoE++ (802.3af/at/bt) Ports 1–8 Up to 90W per port |
— | — |
| Total PoE Budget | — | 230W | — | — |
| Power Supply | Internal | External | External | External |
| Mounting | Desktop / Rackmount | Desktop | Desktop / Wall | Desktop / Wall |
| Fans | Fanless | Fanless | Fanless | Fanless |
| Switching Capacity | 80 Gbps | 40 Gbps | 40 Gbps | 25 Gbps |
| Great For | Higher port-count Multi-Gigabit deployments | Multi-Gigabit + PoE devices | 8-device Multi-Gigabit networks | Smaller Multi-Gigabit setups |
| Compliance | Follows NDAA/TAA | Follows NDAA/TAA | Follows NDAA/TAA | Follows NDAA/TAA |
| Warranty | Limited Lifetime Warranty | Limited Lifetime Warranty | Limited Lifetime Warranty | Limited Lifetime Warranty |
| Learn More View Data Sheet → | Learn More View Data Sheet → | Learn More View Data Sheet → | Learn More View Data Sheet → |
Network requirements change from the core to the edge/access layer. D-Link switching supports high-speed core and aggregation, building distribution, Multi-Gigabit PoE edge/access, and industrial switching for outdoor and remote locations.
