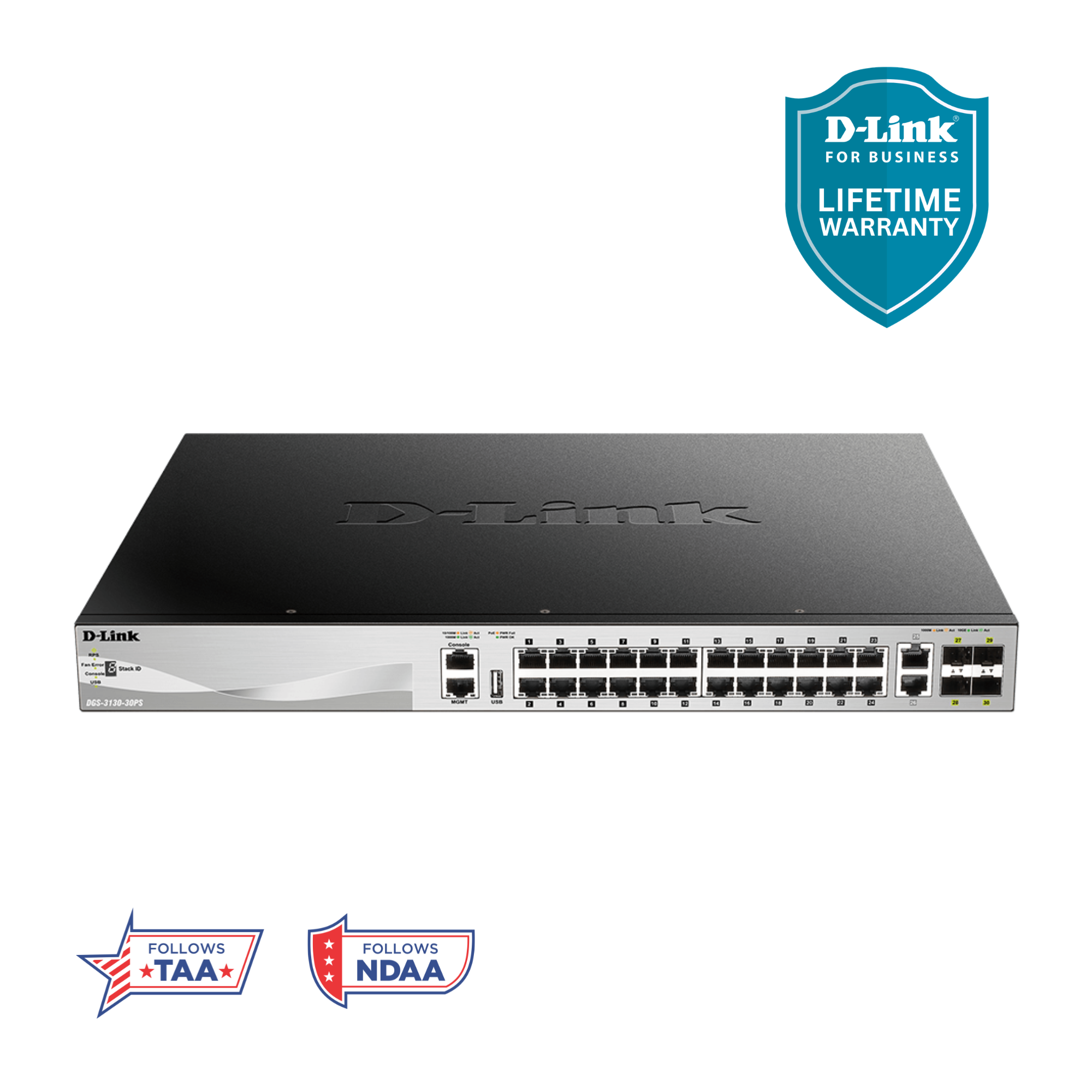

D-Link 30-Port Managed Stackable PoE+ Switch with 10GbE Ports (DGS-3130-30PS), 24 PoE+ Ports (370W/740W) + 2 10GbE Copper Ports + 4 10G SFP+ Ports, L3, Follows NDAA/TAA

DGS-3130 Series: Stackable Managed Switches for Surveillance, High-Density Access, PoE, Fiber, and 10GbE Uplinks

The DGS-3130 Series gives IT teams a flexible stackable switching platform for network environments with heavier access, uplink, surveillance, and device demands. With 30 and 54 port models, the series supports copper Gigabit access, PoE+ camera and device deployments, fiber-based infrastructure, and high-speed 10GbE connections.

Each model includes 2 x 10GbE copper ports and 4 x 10GbE SFP+ ports, giving businesses flexible options for connecting to aggregation switches, servers, NVRs, storage, network closets, and backbone infrastructure. PoE models help power compatible IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices, while SFP models support fiber-focused designs for longer-distance connections between buildings, closets, or distributed areas.

Great For

• IP surveillance networks that need PoE+ power, VLAN segmentation, multicast control, traffic prioritization, and high-speed uplinks for camera traffic

• High-density access switching for offices, schools, healthcare, retail, hospitality, and multi-tenant buildings

• PoE+ device deployments including IP cameras, wireless access points, VoIP phones, access control, and smart building devices

• Fiber-based network designs that need SFP ports for longer-distance connectivity between closets, buildings, or distributed areas

• 10GbE uplink and aggregation needs where access switches connect back to core switches, servers, storage, NVRs, or network backbones

• Multi-switch environments where IT teams want physical stacking to simplify management and expand port capacity


DGS-3130 Series Features at a Glance

• Flexible 30 and 54 Port Models: Choose from Gigabit Ethernet, PoE+, and Gigabit SFP models to support copper access, powered device deployments, or fiber-focused network designs.

• Six Built-In 10GbE Connections: Each model includes 2 x 10GbE copper ports and 4 x 10GbE SFP+ ports for high-speed uplinks, aggregation, server connections, NVRs, storage, and backbone connectivity.

• Built for IP Surveillance Networks: PoE+ models help power compatible IP cameras, while VLANs, QoS, multicast management, 10GbE uplinks, and stacking help support camera-heavy deployments across schools, retail sites, offices, warehouses, hospitality, and multi-tenant buildings.

• PoE+ Options for Connected Devices: PoE models, including the DGS-3130-30PS and DGS-3130-54PS, support PoE+ for IP cameras, wireless access points, VoIP phones, access control devices, and other PoE-enabled equipment.

• 370W PoE Budget, Expandable to 740W: PoE models provide a 370W default PoE power budget, expandable up to 740W with the optional DPS-700 redundant power supply.

• Fiber-Focused SFP Models: The DGS-3130-30S and DGS-3130-54S provide 24 or 48 SFP Gigabit Ethernet ports for fiber-based access, longer-distance connections, and distributed network infrastructure.

• Stackable Design for Network Expansion: Supports stacking of up to 9 switches with up to 80Gbps stacking bandwidth, helping IT teams expand port capacity while managing the stack as a single system.

• Lite Layer 3 Network Control: Supports Layer 2 and Lite Layer 3 features such as VLANs, QoS, IGMP/MLD Snooping, Static Routing, RIP, OSPF, and VRRP to help manage traffic and improve network efficiency.

• Security and Access Control Features: Includes ACLs, IP-MAC-Port Binding with DHCP Snooping, Storm Control, D-Link Safeguard Engine, and 802.1X authentication to help strengthen network access policies.

• Traffic Management for Voice, Video, and Data: Supports QoS, multicast management with IGMP/MLD Snooping, and ISM VLAN to help prioritize and manage traffic for applications such as VoIP, video, IPTV, and surveillance.

• Surge Protection on Access Ports: Built-in 6kV surge protection on PoE and non-PoE Gigabit Ethernet access ports helps protect against electrical surges and supports long-term network continuity planning.

• Flexible Management Options: Supports web-based GUI, CLI, SNMP, and optional D-View Network Management Software for configuration, monitoring, and network administration.

• Optional Redundant Power Support: Non-PoE models support optional redundant power with DPS-500A, while PoE models support DPS-700 for redundancy and expanded PoE power planning.

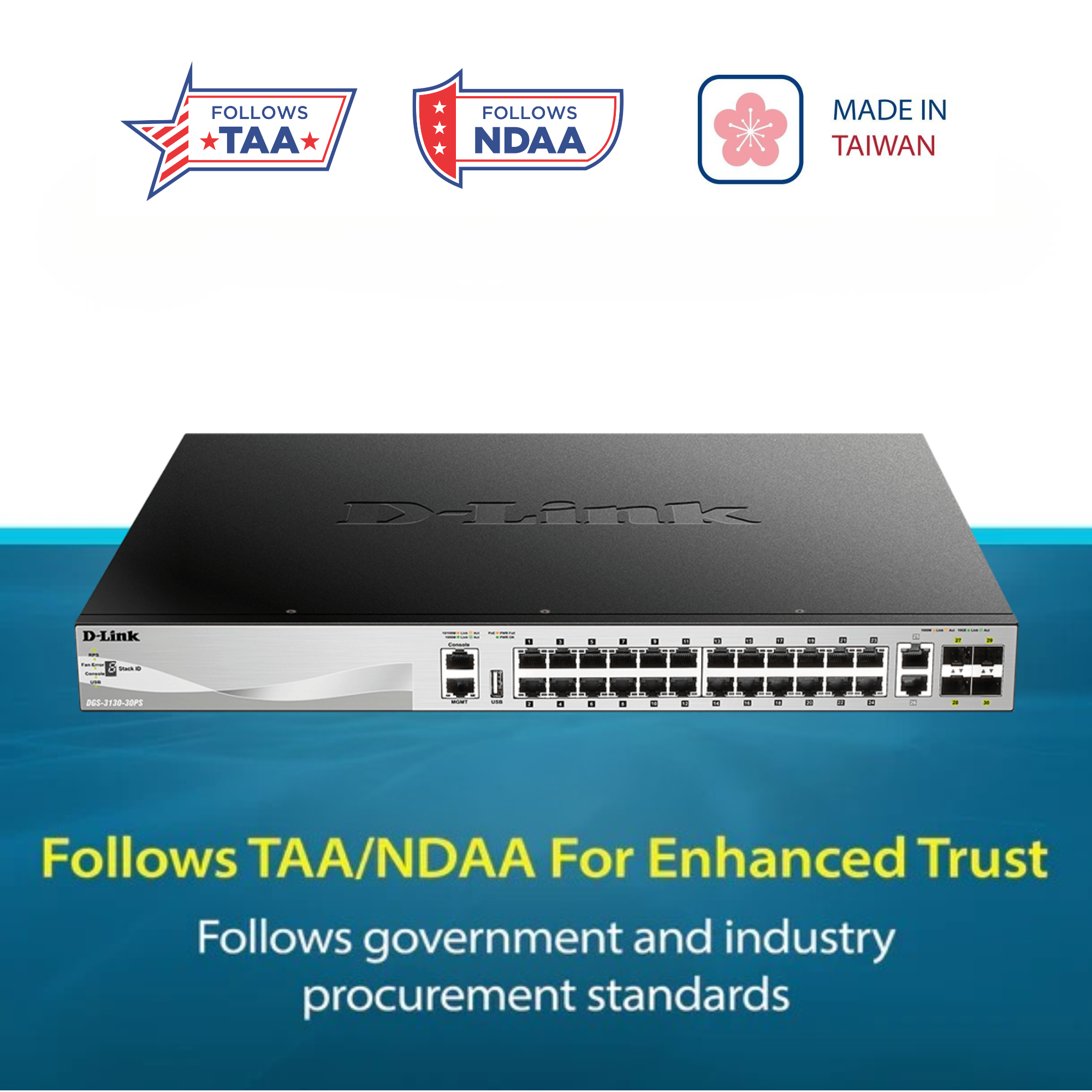

• Follows NDAA/TAA sourcing standards for public sector and enterprise projects and includes Lifetime Warranty coverage in North America.
