D-Link Systems, Inc.

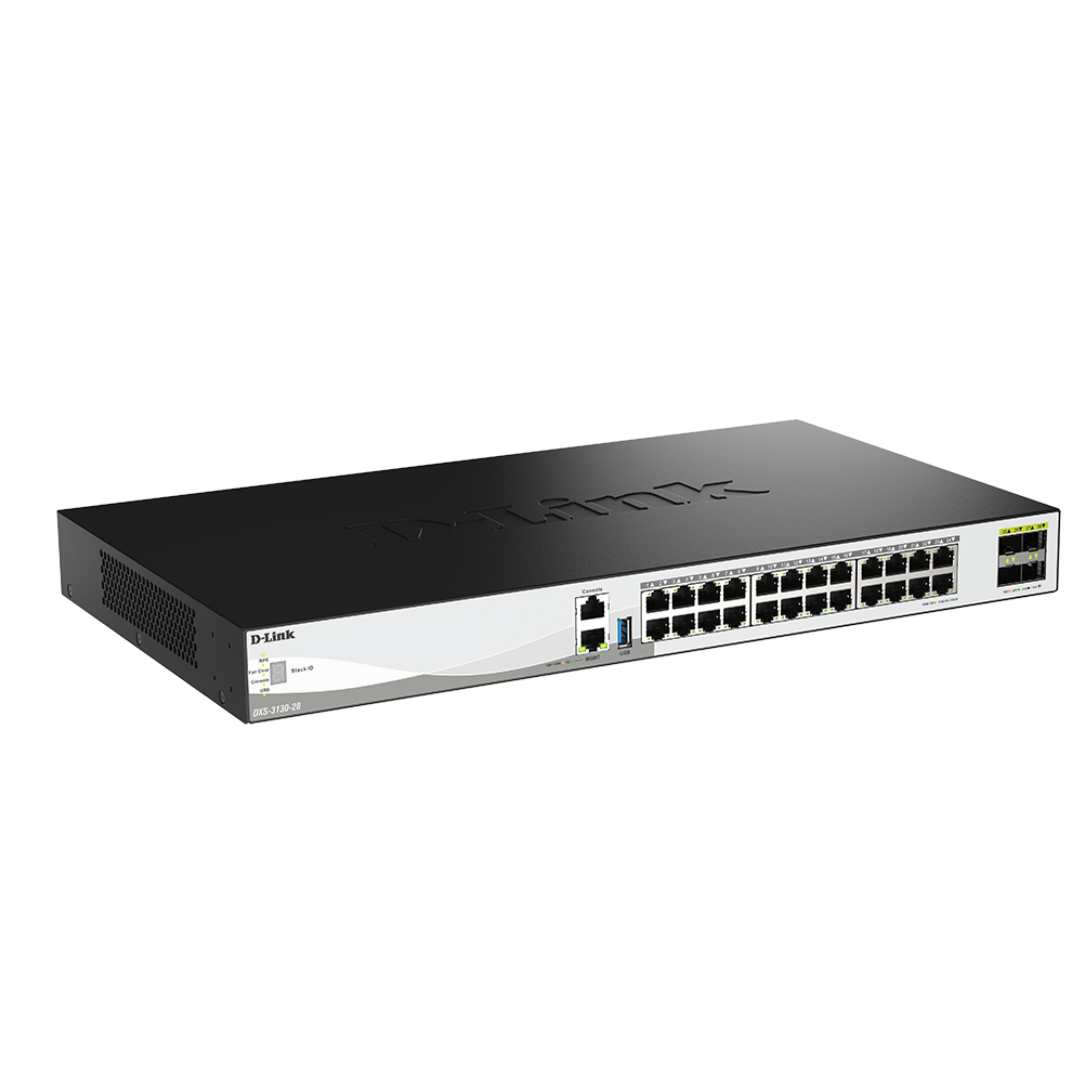

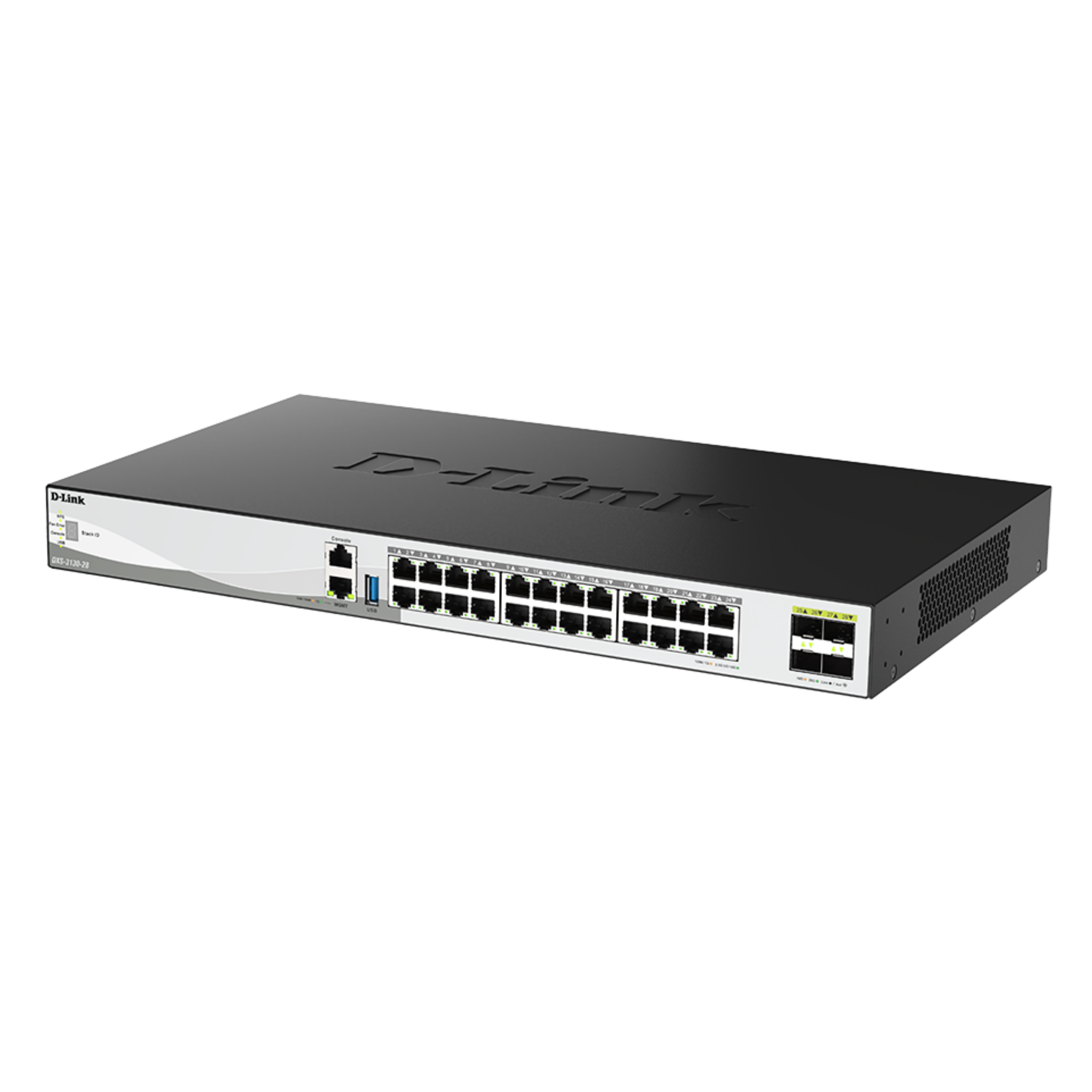

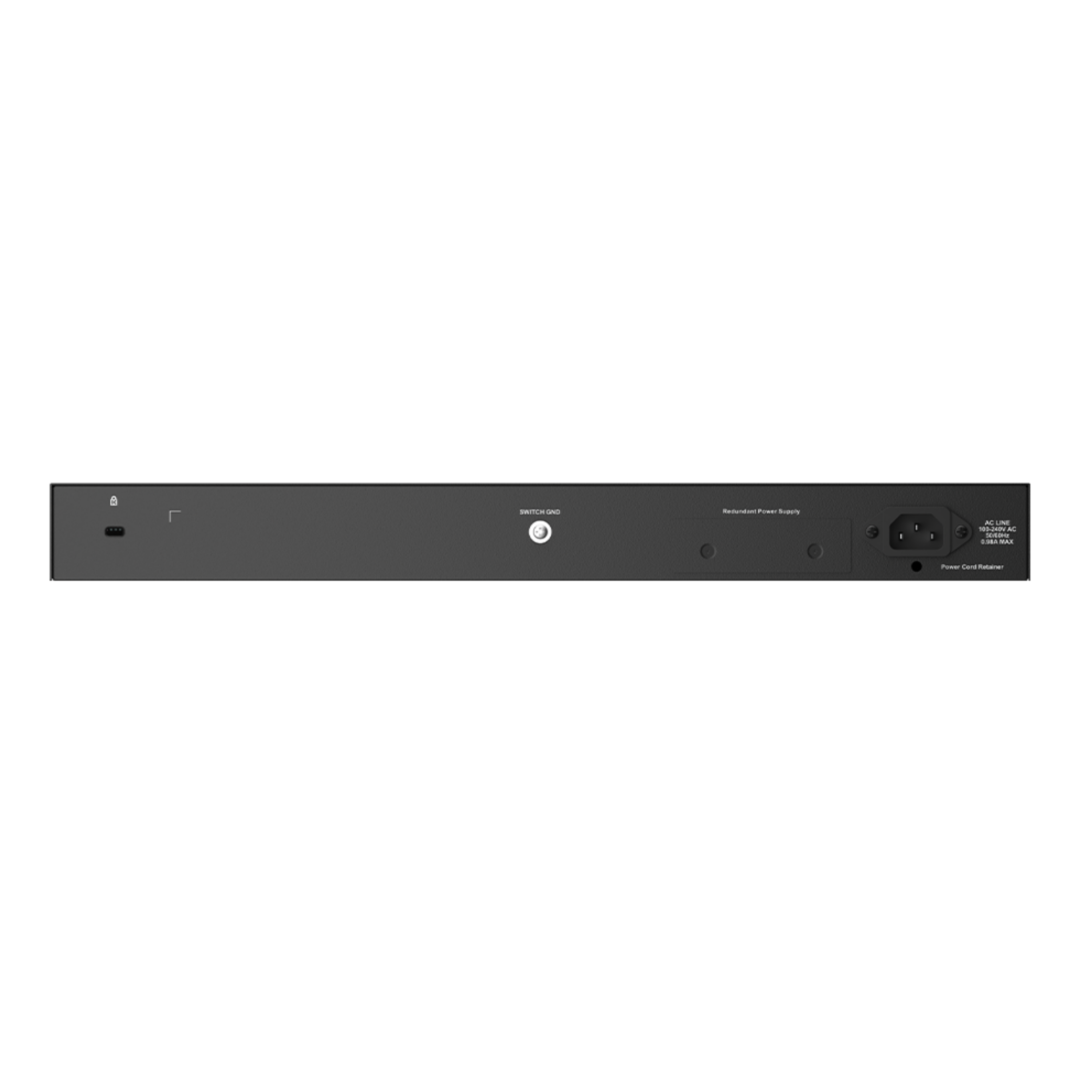

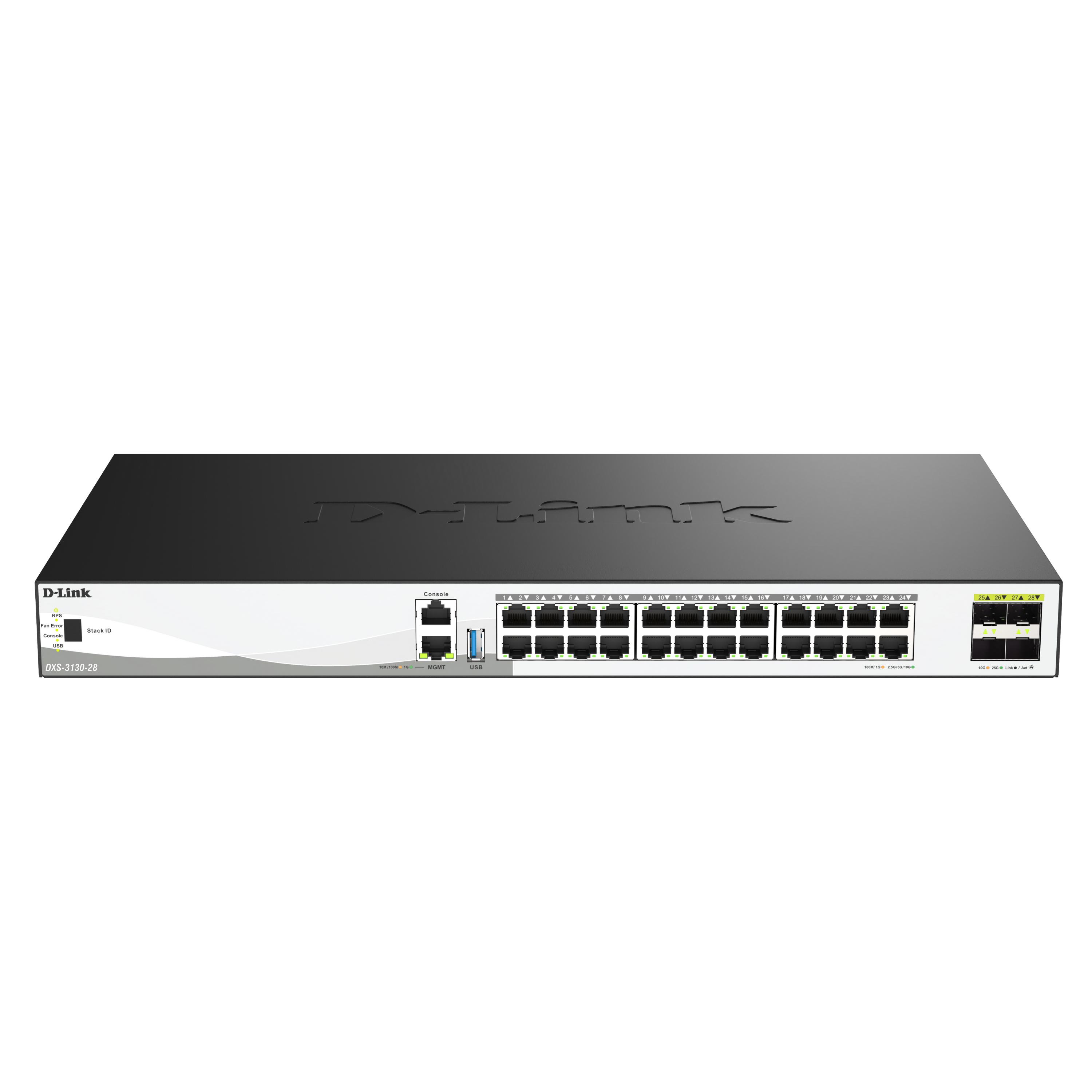

D-Link 28-Port 10GbE Multi-Gig Layer 3 Stackable Managed Ethernet Switch (DXS-3130-28) | 24-Port 10GE Ports, 4×25GbE SFP28 Uplinks, 9-Unit/200Gbps Stacking, Surge Protection, Rack-Mountable, Follows NDAA/TAA, Lifetime Warranty

Name: D-Link 28-Port 10GbE Multi-Gig Layer 3 Stackable Managed Ethernet Switch (DXS-3130-28) | 24-Port 10GE Ports, 4×25GbE SFP28 Uplinks, 9-Unit/200Gbps Stacking, Surge Protection, Rack-Mountable, Follows NDAA/TAA, Lifetime Warranty
Brand: D-Link Systems, Inc.
SKU: DXS-3130-28
Price: 2899.99 USD
Availability: InStock

$2,899.99

Shipping calculated at checkout.

Product variants

Quantity

Product specifications

Switch Type	10 Gigabit Ethernet Smart Managed
Form Factor	Rackmount
Number of Ports	• 24 x 10G SFP+ ports • 4 x 10G BASE-T ports
Switching Capacity	560 Gbps
Maximum Forwarding Rate	416.64 Mpps
MAC Address Table Size	Up to 32,000 entries per device
Packet Buffer	N/A
Flash Memory	N/A
Number of PoE Ports	NA
Max PoE Budget	NA
Maximum Power Consumption	• 100 V / 60 Hz: 87.7 W • 240 V / 60 Hz: 85.7 W
Heat Dissipation	N/A
Weight	7.2 lb
Dimensions	17.36" x 8.28" x 1.73"
VLAN	• 802.1Q VLAN • Port-based VLAN • Configurable VID • 1~4094 • Voice VLAN • Auto Surveillance VLAN • Asymmetric VLAN • 4K VLAN Groups
IGMP Snooping	• IGMP v1/v2/v3 Snooping • Supports 512 groups (shared between dynamic and static, with a max of 128 static) • Per VLAN IGMP Snooping • Support port-based fast leave • Report Suppression
Green Technology	• D-Link Green Technology • Power Saving by: • LED Shutoff • System Hibernation • Port Shutoff

Product information

US Domestic Orders To Contiguous 49 States

Orders are processed Monday – Friday, excluding holidays.
Orders using Fedex SmartPost are estimated to arrive within 5 to 7 business days (not including Sunday or holidays) following credit card authorization and order processing.
Please allow 1 to 3 business days to process order.
Orders placed after 10:00 am Pacific Standard Time will not be processed until the following business day.
D-Link will use their discretion on using Fedex SmartPost carriers only.
Sales tax are not counted towards the merchandise subtotal. Only one promotional code can be used per order.

Shipping Methods and Rates

Order Amount	Fedex SmartPost	Estimated Arrival Time
Over $30.00	FREE	5-7 business days

Free shipping on orders over $30 valid (not including sales tax) on Fedex SmartPost shipping only. Not valid on previous purchases. Valid for limited time only.

Shipping Timeline

Shipping time does not include processing time of 1-3 business days.
Estimated arrival times are not guaranteed. Weather delays and other unforeseen circumstances may impact delivery time.
Fedex does not deliver on Sundays or holidays.

D-Link Holidays

Packages will not be processed or shipped on the following acknowledged holidays.

Holiday	Acknowledged Date
New Year’s Day	Monday, January 1, 2024
President’s Day	Monday, February 19, 2024
Good Friday	Friday, March 29, 2024
Memorial Day	Monday, May 27, 2024
Fourth of July	Thursday, July 4, 2024
Labor Day	Monday, September 2, 2024
Thanksgiving Day	Thursday, November 28, 2024
Day after Thanksgiving	Friday, November 29, 2024
Christmas Day	Wednesday, December 25, 2024
New Year's Eve	Tuesday, December 31, 2024

Additional Information

We do not offer shipping to P.O. Boxes.
We are currently not offering shipping to the following locations:
- Alaska
- American Samoa
- Micronesia
- Guam
- Hawaii
- Marshall Islands
- Northern Mariana Islands
- Palau
- Puerto Rico
- S. Virgin Islands
- APO/FPO

At D-Link, we want to make sure that you are completely satisfied with your purchase. If you are not completely satisfied, you can return your purchase for a refund as long as your product was purchased by you directly from D-Link Shop within 30 days of your request for return.

Simply contact us and we will provide you with an RMA number and return instructions. Box your items and ship. You can reach us at:

https://support.dlink.com/search.aspx

Returned products MUST be same condition as received and shipped with the following;

Unit with intact UPC/Serial tag
Original Power Supply

We would also ask that you include;

Original Packaging
Product Documentation (QIG, Manuals, Warranty Docs)
Driver CD (If Included)

If either the unit or the power supply is missing or damaged, the cost of the item will be deducted from your refund.

Shipping for returned items is not included with your initial purchase. We suggest using a carrier that provides a tracking number. Carefully pack your items as D-Link is not responsible for items that are lost or damaged in transit.

Each product return requires a separate RMA number. Items received without an assigned RMA number will not be issued a refund.

Your credit card company may take up to 30 days to post the refund to your account. Refunds are usually reflected on your card account within four weeks of D-Link's receipt of your returned product.

NOTE: D-Link does not offer refunds for any “services” purchased from D-Link Shop. All sales of services are final.

Product details

All Ports. All Power. All Performance.
Built for High-Density Access and Aggregation

24 10GbE Multi-Gig on Every Port: * All 24 ports support 1G/2.5G/5G/10GbE for modern Wi-Fi AP backhaul, workstations, servers, and IoT aggregation.
4× 25GbE SFP28 Uplinks Built In: Provides the bandwidth to help prevent uplink bottlenecks in high-density deployments, connect stacks without congestion, and link smoothly into aggregation or core, no costly add-on modules.
Stackable Growth: Up to 9 units with 200 Gbps* stack bandwidth, managed as one for simpler multi-closet builds.
Layer-3 Routing for Campus/Aggregation: Static, RIP, and OSPF with VRRP/ECMP improve default-gateway resilience and steer traffic efficiently.
High-Availability Recovery: ERPS (~50 ms), STP/RSTP/MSTP, and Link Aggregation help speed failover and maintain uptime
Enterprise-Enhanced Features: 6 kV surge protection* and Optional Redundant Power Supply (RPS) support (DPS-500A) help provide protected power and service continuity
Smart 5-Speed Fan Cooling: Variable fan speeds help keep noise low in typical use while maintaining safe operating temps
Multicast and QoS at Scale: IGMP/MLD and PIM-SM with 8 queues per port help stabilize video streams and voice
Versatile Management Options: Web-based GUI, CLI, SNMP/sFlow, dual image/config, DHCP auto-config; optional Nuclias Hyper (license included, no subscription fee) or Nuclias Controller (sold separately) for centralized control of access points and switches
Access Control & Policy Enforcement: 802.1X, MAC/Web authentication, ACLs, DHCP Snooping, and IP-MAC-Port Binding help reduce spoofing and keep unauthorized devices off the network
Energy-Efficient Design: IEEE 802.3az (EEE), auto power-down on idle links, cable-length optimization, and smart variable-speed fans help reduce consumption during low-traffic periods.
NDAA/TAA: Follows NDAA/TAA sourcing standards for public sector and enterprise projects
Trusted Business-Class Reliability: Backed by D-Link’s Lifetime Warranty (North America) and over 39 years of networking experience

*Actual performances and such as speed, power or compatibility may vary and can be affected by service plan, network configuration, device/cable limitations, temperature, and other environmental conditions. All referenced speed, power capacity and other performance metrics indicate value ranges up to the potential maximum and are provided for informational purposes only.
